PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	4880 x 1520 x 760 mm
Tabletop thickness	38 mm
Central recessed cable channel width	300 mm
Knee clearance height under tabletop	680 mm
Knee clearance depth from table edge	450 mm
Base panel total height	722 mm
Rounded end radius	760 mm
Seating space per position	610 mm
Power grommet spacing along channel	610 mm
Edge banding thickness	3 mm
Base foot width at rounded ends	200 mm
Leveling glide adjustment range	15 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	16 people
Distributed tabletop static load	450 kg
Net product weight	220 kg
Surface scratch resistance rating	Class 1
Formaldehyde emission level	0.124 mg/m³
Finish adhesion grade	Grade 0
Limited commercial warranty	10 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	25mm thick E1 grade high-density fiberboard
Tabletop surface	0.6mm mahogany wood veneer with matte PU lacquer finish
Edge trim	Solid mahogany wood edge banding, rounded profile
Base construction	18mm thick engineered wood panel with raised decorative detailing
Cable channel lining	PVC and soft brush gaskets at access points
Leveling hardware	Zinc-plated steel adjustable glides with non-marking rubber pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable management	Full-length recessed raceway with brush access ports
Power/data access	8 dual-sided grommet positions for AC, USB, and RJ45 ports
Stability adjustment	Adjustable steel glides at all base contact points
Modular assembly	Knock-down panel construction with bolted internal stretchers

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Corporate executive boardrooms and large meeting rooms
Recommended use case	Board meetings, client presentations, and video conference sessions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-3:2003	Test methods for office tables mechanical safety
EN 13722:2004	Furniture strength and durability for office tables

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office tables performance standard for commercial use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 4897.3-2003	Performance requirements for particleboard for furniture use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
3. GB/T 4897.3-2003: Performance requirements for particleboard for furniture use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CONF-RAC-4880-MAH-PANEL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CONF-RAC-4880-MAH-PANEL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CONF-RAC-4880-MAH-PANELOpen Export Tool

Quick Actions

Post an RFQ

Product Description

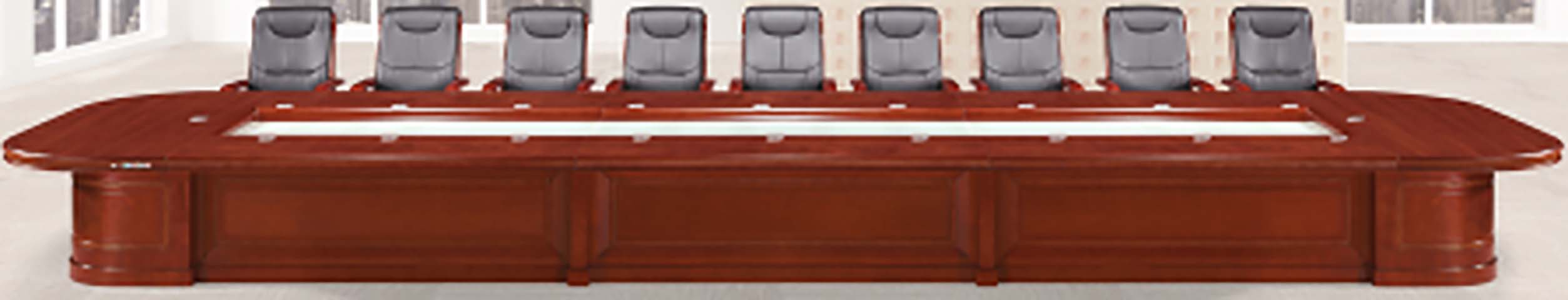

This 16-person racetrack mahogany veneer boardroom conference table delivers a polished, formal traditional aesthetic tailored to high-stakes corporate gathering spaces. Its signature racetrack form features smooth, rounded ends with a consistent curved profile, creating a balanced, inclusive layout that supports unobstructed sightlines across all seating positions. The closed raised panel base adds structured visual weight that complements the warm, rich tone of the mahogany veneer, while the full-length central recessed cable channel sits flush with the tabletop to maintain a clean, uncluttered surface without disrupting the table’s refined silhouette. The table is constructed for long-term commercial use, with a 25mm thick E1 grade high-density fiberboard substrate topped with 0.6mm mahogany wood veneer finished with matte PU lacquer, and edged with solid mahogany wood banding shaped to a smooth rounded profile. The closed raised panel base is built from 18mm thick engineered wood with decorative raised detailing, and fitted with zinc-plated steel adjustable glides with non-marking rubber pads at every floor contact point. The central cable channel is lined with PVC, with soft brush gaskets at all access points to contain cords while allowing easy cable routing across the full table length. All materials meet formaldehyde emission levels of 0.124 mg/m³, with a Class 1 surface scratch resistance rating and Grade 0 finish adhesion to support consistent heavy use, backed by a 10-year limited commercial warranty. Practically, the table seats 16 people with dedicated 610mm of space per position, supported by 680mm of knee clearance height under the tabletop and 450mm of knee clearance depth from the table edge, and accommodates a 450kg distributed static load across its surface. It features 8 dual-sided grommet positions for AC, USB, and RJ45 ports integrated alongside the central raceway, to keep presentation, video conferencing, and personal device cords organized and out of sight. The adjustable glides allow quick stabilization on uneven flooring, and the knock-down modular assembly with bolted internal stretchers simplifies installation, with a reference assembly time of 40 minutes per set, delivered in 2 cartons. This table is designed for corporate executive boardrooms and large meeting rooms, ideal for board meetings, client presentations, and video conference sessions. When planning procurement, note that it ships in two separate cartons with a total packaged gross weight of 90kg per set, and requires coordination for delivery and access to the installation space before assembly.

FurnDim

16-Person Racetrack Mahogany Veneer Boardroom Conference Table with Central Cable Channel Specifications

CONF-RAC-4880-MAH-PANEL
