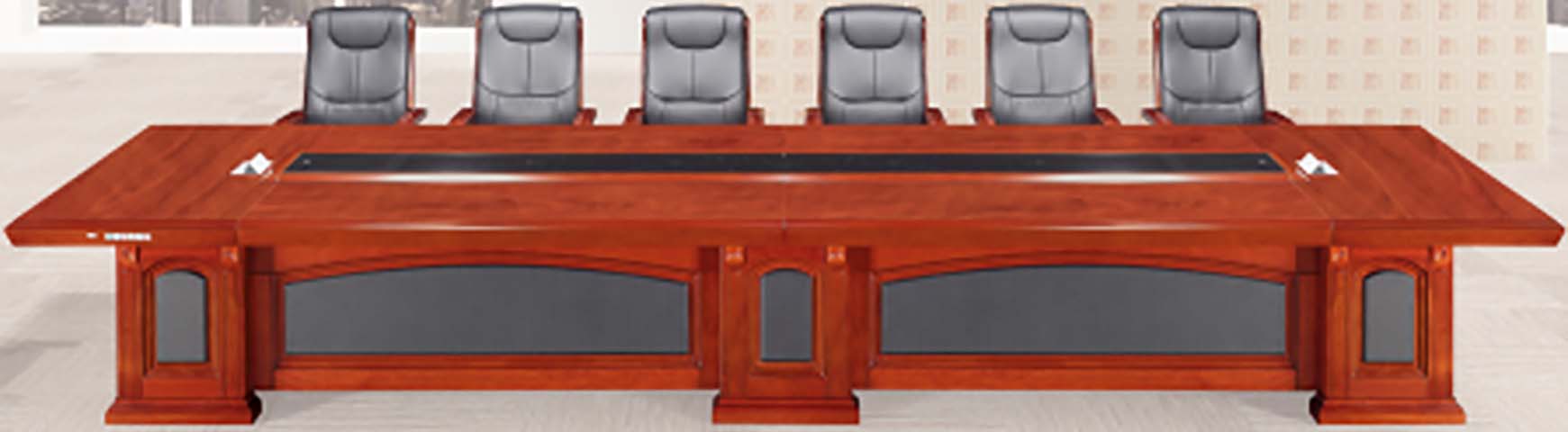

16-Person Rectangular Red Wood Veneer Boardroom Conference Table with Central Cable Raceway (model CF-RW-4800-3PED) is listed under Traditional Conference Table, with overall dimensions of 4800 × 1620 × 760 mm and main material of MDF. Load capacity: 480 kg. Certifications: Traditional,formal,style,rectangular,boardroom,form,central,integrated,cable,management,paneled,pedestal,base,commercial,furniture. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 4800 x 1620 x 760 mm | |
|---|---|---|
| Tabletop thickness | 40 mm | |
| End overhang length from outer pedestal | 300 mm | |
| Central cable raceway width | 200 mm | |
| Under-table knee clearance height | 680 mm | |
| Pedestal base footprint per support | 600 x 450 mm | |
| Table corner radius | 30 mm | |
| Solid wood edge lipping thickness | 20 mm | |
| Under-table cable tray clearance below raceway | 120 mm | |
| Pedestal spacing between support centers | 2100 mm | |
| Side overhang from pedestal to long edge | 120 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 16 people | |
|---|---|---|
| Distributed tabletop static load capacity | 480 kg | |
| Product net weight | 225 kg | |
| Surface scratch resistance | 2000 cycles | |
| Structural warranty period | 5 years | |
| Edge impact resistance | 1.5 m drop | |
| Paint adhesion grade | Grade 1 | |
| Seating capacity perimeter edge length per person | 675 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | E1-grade high-density fiberboard with formaldehyde emission ≤0.124mg/m³ | |
|---|---|---|
| Tabletop surface finish | 0.6mm red-brown cherry wood veneer with matte PU lacquer topcoat | |
| Table edge trim | Solid hardwood lipping with matching stain finish, bullnose profile | |
| Support pedestals | Solid wood frame with matte gray upholstered/laminated arched decorative panel insets | |
| Cable raceway components | Powder-coated cold-rolled steel tray with flip-open access lid | |
| Internal reinforcement | 2mm thick steel cross-bracing between pedestals to prevent tabletop sag |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Full-length recessed central raceway with under-table steel tray, routes cables to floor through hollow pedestal bases | |
|---|---|---|
| Integrated port compatibility | Pre-cut openings at each raceway end for power, HDMI, network and USB data modules | |
| Assembly configuration | Knock-down design with three pedestal bases bolted to tabletop sections for on-site installation | |
| Surface maintenance | Stain-resistant and heat-resistant lacquer finish suitable for hot beverage service and regular office cleaning |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Formal boardrooms, executive meeting rooms and corporate conference facilities | |
|---|---|---|
| Recommended supporting configuration | Paired with executive leather conference chairs and integrated AV/power modules for presentation use |
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office tables safety and strength test methods, applicable to structural stability | |
|---|---|---|
| EN 13722:2004 | Furniture assessment of surface resistance to cold liquids, applicable to finish stain resistance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office products desk products performance standard, applicable to load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural safety and finish performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to MDF substrate compliance | |
| GB/T 4893.4-2013 | Surface furniture abrasion resistance test, applicable to lacquer finish durability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural safety and finish performance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MDF substrate compliance; 3. GB/T 4893.4-2013: Surface furniture abrasion resistance test, applicable to lacquer finish durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
