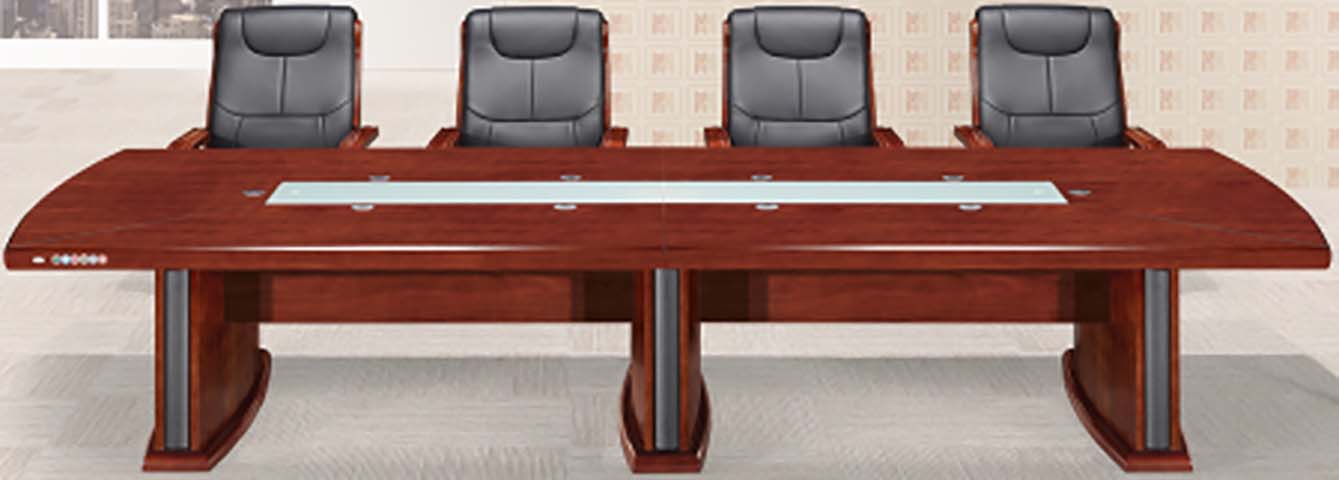

Rounded-End Red Wood Veneer 8-Seat Conference Table with Central Cable Inlay (model CF-RT32-8S-WV) is listed under Traditional Conference Table, with overall dimensions of 3200 × 1200 × 760 mm and main material of MDF. Load capacity: 180 kg. Certifications: traditional,executive,style,wooden,veneer,finish,cable,management,integrated,triple,pedestal,base. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 3200 x 1200 x 760 mm | |
|---|---|---|
| Tabletop thickness | 30 mm | |
| Central glass inlay length | 2400 mm | |
| Central glass inlay width | 150 mm | |
| End radius | 600 mm | |
| Pedestal base width | 300 mm | |
| Pedestal base depth | 700 mm | |
| Knee clearance height | 680 mm | |
| Modesty panel height | 400 mm | |
| Cable grommet spacing | 800 mm | |
| Power panel length (front edge) | 120 mm | |
| Metal accent strip width | 30 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 10 people | |
|---|---|---|
| Distributed tabletop static load | 180 kg | |
| Net weight | 180 kg | |
| Finish abrasion resistance | 2000 cycles | |
| Surface static load per point | 50 kg | |
| Leveling adjustment range | 15 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | CARB P2 grade MDF | |
|---|---|---|
| Tabletop surface | 0.6 mm red walnut wood veneer with high-gloss UV lacquer | |
| Central inlay | 8 mm frosted tempered glass | |
| Pedestal bases | Solid wood veneer over engineered wood core, 2 mm ABS edge banding | |
| Accent trim | Brushed gray aluminum alloy | |
| Hardware and connectors | Zinc-plated steel cam locks and corner brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | 8 recessed cable grommets along central glass channel, under-table wire trough | |
|---|---|---|
| Integrated connectivity module | Front-edge port strip with AC outlets, USB-A, HDMI, RJ45 Ethernet | |
| Stability structure | Triple wide-flared pedestal bases with full-length modesty panel | |
| Floor protection | Non-marking felt pads on base feet, adjustable levelers |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive boardrooms | Formal meeting table for 10person leadership and client meetings | |
|---|---|---|
| Corporate training rooms | Large table for instructor-led sessions with AV presentation equipment |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office tables, safety and strength requirements for commercial office furniture | |
|---|---|---|
| EN 12521:2015 | Furniture for non-domestic seating, table stability and load requirements | |
| EN 717-1:2004 | Formaldehyde emission determination for wood-based panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to table load, stability and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to table structural stability | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to substrate performance requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, indoor air quality requirement |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to table structural stability; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to substrate performance requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, indoor air quality requirement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
