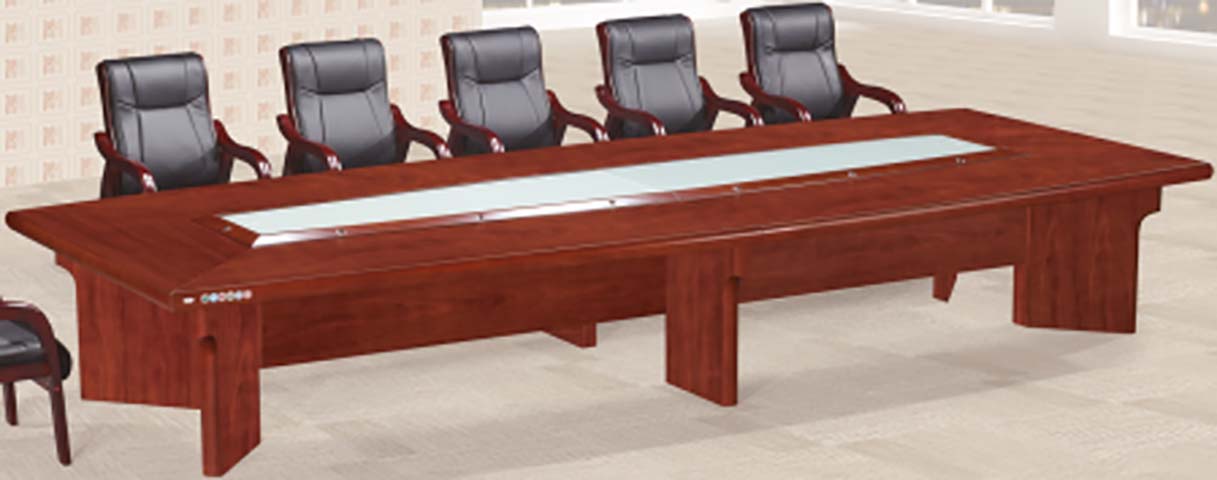

Rectangular Wood Veneer Boardroom Conference Table with Central Cable Management (model CONF-PANEL-4800-RED) is listed under Traditional Conference Table, with overall dimensions of 4800 × 1800 × 760 mm and main material of MDF. Load capacity: 260 kg. Certifications: traditional,style,fixed,panel,leg,structure,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 4800 x 1800 x 760 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Under-table knee clearance height | 660 mm | |
| Under-table knee clearance depth | 650 mm | |
| Central cable panel dimensions | 3800 x 400 mm | |
| Edge port cutout dimensions | 272 x 132 mm | |
| Modesty apron height | 350 mm | |
| Panel leg cross-section | 200 x 600 mm | |
| Edge radius | 30 mm | |
| Per-seat table edge allocation | 600 mm per person | |
| Cable panel inset from table edge | 700 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 12 people | |
|---|---|---|
| Distributed tabletop static load | 260 kg | |
| Product net weight | 170 kg | |
| Finish abrasion resistance | 2000 cycles | |
| Vertical leg static load per support | 75 kg | |
| Adjustable foot glide adjustment range | 10 mm | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 25mm E1 grade high-density fiberboard | |
|---|---|---|
| Tabletop finish material | 0.6mm AAA red wood veneer, 5-layer UV lacquer coat | |
| Support legs | Solid engineered wood with matching veneer finish | |
| Central cable channel cover | Frosted tempered glass | |
| Modesty apron panel | 18mm veneered engineered wood | |
| Hardware connectors | Zinc-plated steel cam locks and joint brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Recessed central longitudinal trough with frosted glass cover | |
|---|---|---|
| Edge connectivity ports | Integrated port panel at table head with power, HDMI, USB, network ports | |
| Leveling system | Adjustable foot glides at each leg base | |
| Modesty panel privacy | Full-length solid apron blocks view of seated users' legs |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardrooms | For 12-person executive meetings and strategy sessions | |
|---|---|---|
| Government meeting rooms | Traditional red wood finish matches formal official office environments |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables, safety and strength requirements for meeting surfaces | |
|---|---|---|
| EN 13722:2004 | Furniture, test methods for surface resistance to abrasion and liquids |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable for static load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for finished product quality inspection | |
|---|---|---|
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, mandatory for indoor office use | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for substrate performance verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for finished product quality inspection; 2. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, mandatory for indoor office use; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for substrate performance verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
