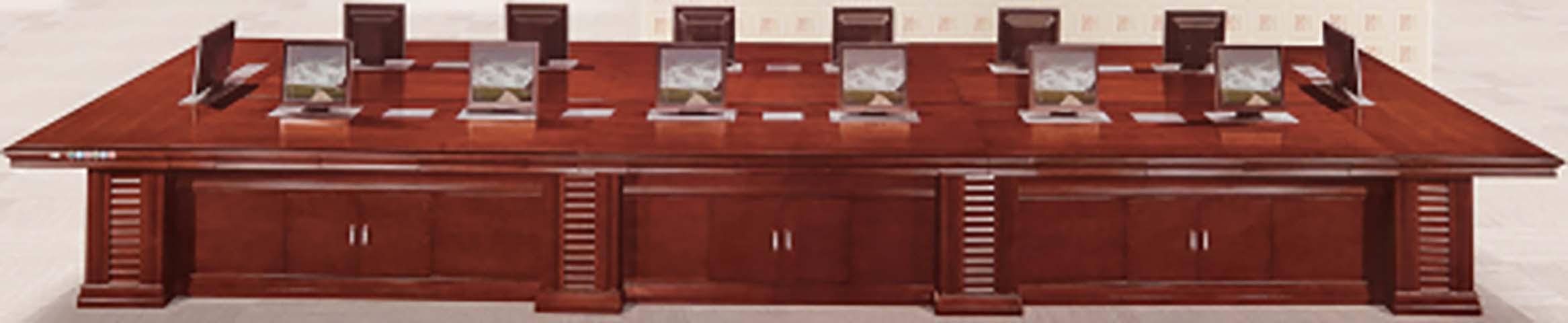

Mahogany Finish AV-Ready Rectangular Conference Table with Enclosed Cabinet Base (model CONF-AV-MAH-5400-16P) is listed under Traditional Conference Table, with overall dimensions of 5400 × 1800 × 760 mm and main material of MDF. Load capacity: 400 lb. Certifications: Traditional,formal,style,full-plinth,enclosed,storage,base,integrated,AV-ready,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 5400 x 1800 x 760 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Under-table leg clearance height | 660 mm | |
| Base cabinet door width per segment | 1200 mm | |
| Vertical slat pilaster width | 150 mm | |
| Plinth base height | 660 mm | |
| Table edge overhang from base | 50 mm | |
| Internal cabinet storage depth | 400 mm | |
| AV control button strip length | 300 mm | |
| Decorative base plinth trim thickness | 30 mm | |
| Adjustable leveling glide height adjustment range | 15 mm | |
| Cable grommet opening diameter | 80 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load capacity | 400 lb | |
|---|---|---|
| Net product weight | 322 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Finish stain resistance | Level 4 | |
| Hinge cycle durability per cabinet door | 50000 cycles | |
| Leveling glide static load per foot | 150 kg | |
| Commercial warranty period | 10 years | |
| Seating capacity per long side | 7 seats | |
| End seating capacity per short side | 1 seat | |
| Total nominal seating capacity | 16 seats |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | 0.8 mm mahogany wood veneer over 45 mm MDF substrate | |
|---|---|---|
| Table edge trim | Solid mahogany hardwood molding | |
| Base cabinet carcass | 18 mm engineered particleboard core with matching mahogany veneer | |
| Cabinet doors | 18 mm veneered engineered wood with brushed metal pull handles | |
| Vertical slat pilasters | Solid wood slats in matching mahogany finish | |
| Hardware components | Zinc alloy door hinges, steel leveling glides, steel cable management channels |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Full-length internal wiring channel with flush grommets for AV, power and data cables | |
|---|---|---|
| Base storage access | Three double-door cabinet segments providing enclosed storage for meeting materials and AV equipment | |
| Integrated AV control | Edge-mounted button panel on left table edge for connected presentation system control | |
| Leveling adjustment | Floor-mounted steel glides adjust to compensate for uneven floor surfaces |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Formal boardrooms | Suitable for executive leadership meetings with 16participants and integrated AV presentation setups | |
|---|---|---|
| Government and enterprise meeting spaces | Matches traditional formal wood furniture aesthetic for official meeting environments |
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office furniture work tables test methods for surface finish and structural stability | |
|---|---|---|
| EN 15372:2016 | Office furniture strength, durability and safety requirements for non-domestic tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, applicable to tabletop load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and base structural performance | |
|---|---|---|
| GB/T 4897.3-2015 | Particleboard for furniture use, applicable to engineered wood cabinet and substrate components | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, required for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and base structural performance; 2. GB/T 4897.3-2015: Particleboard for furniture use, applicable to engineered wood cabinet and substrate components; 3. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, required for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
