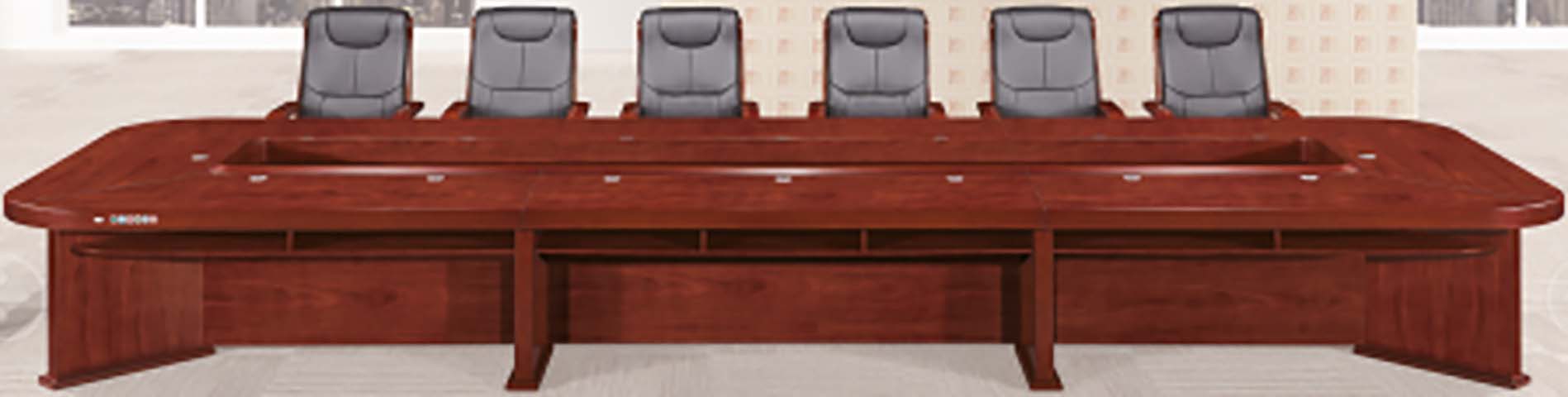

Traditional Red Mahogany Veneer Boat-Shaped 14-Person Conference Table with Central Cable Trough (model CONF-BOAT-MAH-4800) is listed under Traditional Conference Table, with overall dimensions of 4800 × 1600 × 760 mm and main material of MDF. Load capacity: 260 kg. Certifications: Traditional,formal,style,boat-shaped,tabletop,integrated,cable,management,open,lower,storage,shelves. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 4800 x 1600 x 760 mm | |
|---|---|---|
| Tabletop thickness | 51 mm | |
| Knee clearance height under tabletop | 670 mm | |
| Lower open shelf depth | 350 mm | |
| Central cable trough dimensions | 4200 x 200 x 40 mm | |
| Power grommet spacing | 700 mm | |
| End support panel thickness | 50 mm | |
| Intermediate support leg section | 100 x 100 mm | |
| Edge profile radius | 30 mm | |
| Lower shelf height from floor | 250 mm | |
| Per-person seating edge length | 700 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load capacity | 260 kg | |
|---|---|---|
| Seating capacity | 14 people | |
| Total product net weight | 400 kg | |
| Finish scratch resistance | 2H pencil hardness | |
| Leveling adjustment range per foot | 15 mm | |
| Static load per lower storage shelf | 50 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 18mm thick high-density fiberboard | |
|---|---|---|
| Tabletop surface | 0.6mm mahogany wood veneer with PU lacquer finish | |
| Support structure | Solid wood veneer wrapped MDF panels and legs | |
| Edge trim | Solid mahogany wood beveled edge | |
| Cable trough cover | 1.2mm thick steel with veneer match finish | |
| Leveling feet | Nylon base with metal threaded stem |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable management | Recessed full-length trough with removable cover routes power/data cables | |
|---|---|---|
| Surface power access | 12 evenly spaced grommet positions for modular power/data modules | |
| Lower open storage | Segmented open shelves below tabletop for meeting materials and devices | |
| Modular assembly | Multi-section tabletop connected with steel cam fasteners and connecting plates |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Formal corporate boardrooms | Suits executive meetings for up to 14 attendees with integrated cable access for presentation devices | |
|---|---|---|
| Government and institutional conference spaces | Matches traditional formal wood finish requirements for official meeting environments |
EU Market Access Requirements* EN Standards
| EN 527-3:2004 | Applicable to office tables test methods for mechanical stability and strength verification | |
|---|---|---|
| EN 13722:2004 | Applicable to office furniture test methods for surface finish durability assessment |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable to desk products standard for vertical and horizontal load, stability performance validation |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to wooden office furniture general technical requirements, for finish strength and dimensional stability checks | |
|---|---|---|
| GB 18580-2017 | Applicable to formaldehyde emission limits for wood-based panels, requires E1 grade (≤0.124mg/m³) for indoor use | |
| GB/T 4897.3-2003 | Applicable to high-density fiberboard substrate performance requirements for furniture use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to wooden office furniture general technical requirements, for finish strength and dimensional stability checks; 2. GB 18580-2017: Applicable to formaldehyde emission limits for wood-based panels, requires E1 grade (≤0.124mg/m³) for indoor use; 3. GB/T 4897.3-2003: Applicable to high-density fiberboard substrate performance requirements for furniture use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
