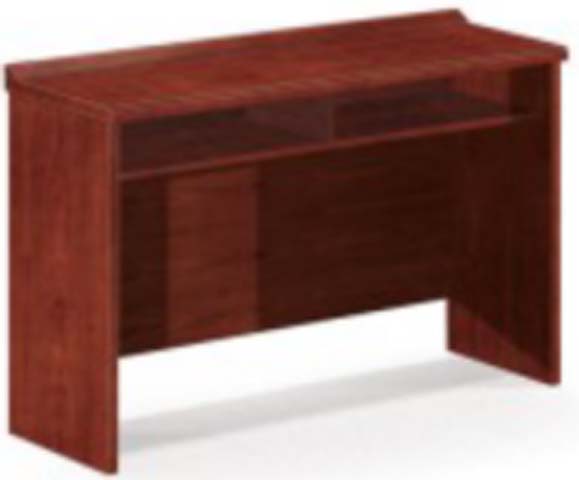

Traditional Mahogany Finish Executive Writing Office Desk (model OFW-MOD-1680-910) is listed under Traditional Dais Table, with overall dimensions of 1680 × 910 × 750 mm and main material of MDF. Load capacity: 136 kg. Certifications: Traditional,style,fixed-height,pedestal,construction,reddish,brown,finish,modesty,panel. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 1680 x 910 x 750 mm | |
|---|---|---|
| Desktop thickness | 32 mm | |
| Modesty panel thickness | 19 mm | |
| End pedestal panel thickness | 25 mm | |
| Drawer front thickness | 19 mm | |
| Seated knee clearance height | 622 mm | |
| Seated knee clearance width | 1070 mm | |
| Seated knee clearance depth | 660 mm | |
| Rear raised edge height | 20 mm | |
| Drawer internal dimensions | 308 x 483 mm | |
| Cable grommet diameter | 60 mm | |
| Edge banding thickness | 2 mm | |
| Leveling glide height adjustment | 12 mm | |
| PVC edge band thickness | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop uniform static load capacity | 136 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Desk locking hinge cycle rating | 100000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Assembled product net weight | 135 kg | |
| Recommended user weight limit | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | 45lb density flake/particle board core | |
|---|---|---|
| Desktop surface | Thermally fused laminate or book-matched mahogany veneer | |
| Edge trim | 2mm thick impact-resistant PVC edge banding | |
| Modesty/side panels | 19mm thick 3-ply engineered wood with matching mahogany veneer/laminate | |
| Drawer box construction | Plywood sides with dovetail joinery, framed 3-ply bottoms | |
| Hardware components | Ball-bearing steel drawer slides, brass-finish pulls, keyed cam locks, nylon leveling glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Drawer operation | Full-extension ball-bearing slides allow complete drawer access for office supply storage | |
|---|---|---|
| Locking system | Keyed lock secures both upper front drawers, 2 keys provided per desk | |
| Leveling adjustment | Nylon glides on base corners adjust to compensate for uneven floor surfaces | |
| Cable management | 60mm diameter desktop grommets route power/data cables from work surface to floor |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross shipping weight | 148 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Fits traditional professional office decor for managerial and executive workspaces | |
|---|---|---|
| Home office study | Provides classic styled dedicated work surface for residential home office use |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to desk load and stability testing | |
|---|---|---|
| EN 12521:2015 | Furniture strength durability and safety for domestic and commercial tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for performance, durability and structural safety of office desks | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental compliance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk structural stability and finish quality | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to engineered wood core structural performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural stability and finish quality; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to engineered wood core structural performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
