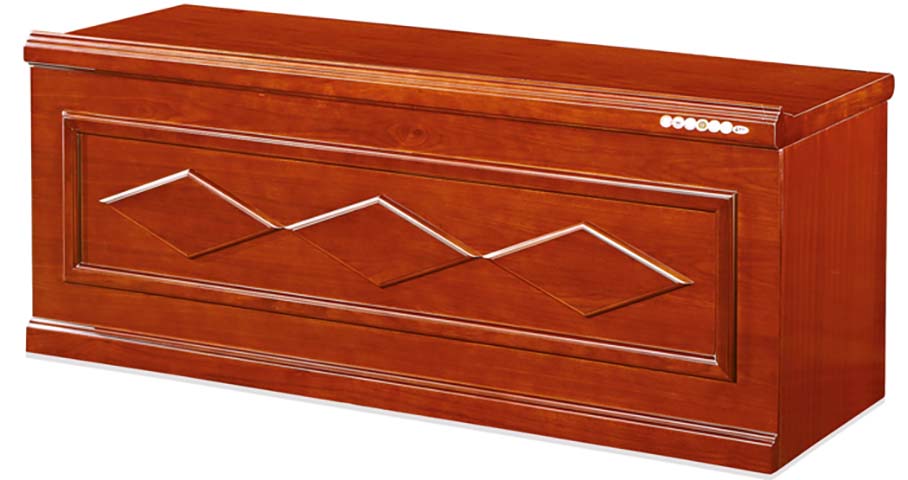

Product supplierRed Walnut Veneer Integrated AV Control Conference Lectern Desk, 18mm thick E1-grade MDF
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 800 × 760 mm | |
|---|---|---|
| work surface height | 760 mm | |
| work surface depth | 600 mm | |
| decorative front panel height | 520 mm | |
| plinth base height | 80 mm | |
| top edge trim thickness | 40 mm | |
| AV control button set length | 180 mm | |
| front panel frame width | 60 mm | |
| side panel thickness | 25 mm | |
| single diamond inlay width | 420 mm | |
| diamond inlay relief depth | 8 mm | |
| internal equipment compartment height | 480 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| product net weight | 84 kg | |
|---|---|---|
| top surface static load capacity | 100 kg | |
| integrated AV system support audience size | 300 people | |
| surface scratch resistance | Class 2 (2000 cycles) | |
| static load stability factor | 1.5 | |
| internal equipment compartment rack capacity | 12U | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| panel substrate | 18mm thick E1-grade MDF | |
|---|---|---|
| surface finish | Red walnut wood veneer with 3-coat scratch-resistant PU lacquer | |
| edge banding | Solid hardwood molded trim matching veneer color | |
| internal reinforcement | 1.2mm thick steel bracket at base joints | |
| decorative panel | Raised CNC-machined MDF with 3 connected diamond inlays | |
| AV control panel | ABS plastic button set with embedded membrane switches |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| integrated AV control | 7-button membrane interface for connected presentation equipment | |
|---|---|---|
| cable management | Concealed internal cable chases with rear exit ports | |
| equipment access | Lockable rear access panel for internal AV component maintenance | |
| floor level adjustment | 4 adjustable foot glides at base corners |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| formal conference rooms | Suitable for presidential panel setups and keynote speeches in government or corporate boardrooms | |
|---|---|---|
| lecture halls and auditoriums | Used as teacher/presenter station with integrated AV control for multimedia teaching |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Office furniture safety requirements for standing work surfaces, applicable to lectern stability | |
|---|---|---|
| EN 312:2010 | Particleboard and MDF performance specifications, applicable to substrate material |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to top load and structural durability |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to MDF substrate | |
| GB/T 4897.3-2003 | Requirements for MDF used in furniture, applicable to panel structural performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MDF substrate; 3. GB/T 4897.3-2003: Requirements for MDF used in furniture, applicable to panel structural performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
