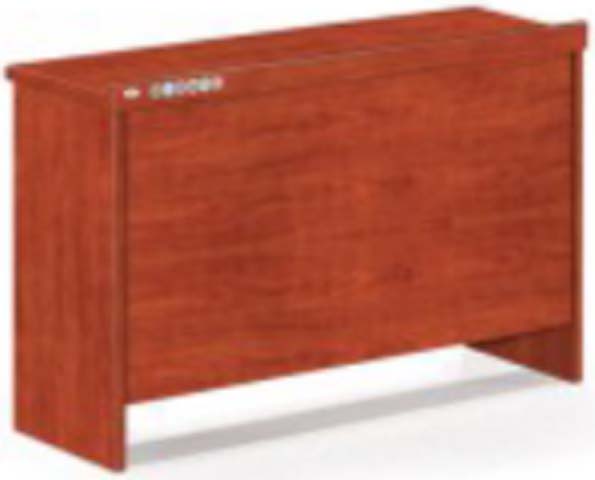

Traditional Cherry Veneer Executive Desk with Full Modesty Panel (model EXD-CHR-1800-MOD) is listed under Traditional Dais Table, with overall dimensions of 1800 × 900 × 760 mm and main material of MDF. Load capacity: 113 kg. Certifications: traditional,styling,solid,full-width,modesty,panel,cable,pass-through. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 1800 x 900 x 760 mm | |
|---|---|---|
| worktop thickness | 32 mm | |
| modesty panel thickness | 19 mm | |
| edge band thickness | 2 mm | |
| central knee clearance height | 610 mm | |
| central knee clearance width | 1400 mm | |
| under-desk vertical leg clearance | 610 mm | |
| end support panel thickness | 25 mm | |
| cable grommet diameter | 60 mm | |
| base foot height | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desktop static load capacity | 113 kg | |
|---|---|---|
| unit net weight | 68 kg | |
| finish abrasion resistance | 400 cycles | |
| recommended user weight limit | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| worktop core | Flakeboard/MDF core with kiln-dried wood moisture content ≤8% | |
|---|---|---|
| surface finish | Medium red-brown cherry veneer with satin catalyzed varnish | |
| modesty panel | 3-ply veneer over engineered wood core, mortise-and-tenon joinery | |
| edge detailing | Framed solid wood edge trim with matching veneer wrap | |
| joinery hardware | Reinforced glue blocks and wood screw fasteners | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| cable management | Rear-edge cable cutouts for routing monitor and power cords | |
|---|---|---|
| seated work access | Central open knee bay for standard office chair placement | |
| surface maintenance | Damp-cloth cleanable scratch-resistant finish | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| private executive office | Fits individual managerial workspaces requiring front privacy modesty panel | |
|---|---|---|
| traditional office fit-outs | Matches classic cherry wood casegood collections for formal work environments |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and dimensional requirements, applicable for commercial office use | |
|---|---|---|
| EN 527-2:2016 | Office work tables: mechanical safety and stability requirements, applicable for structural testing | |
| EN 13722:2004 | Furniture: strength and durability of office storage components, applicable for fixed panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: performance requirements for static load and durability, applicable for commercial use | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage components for office furniture, applicable for attached panel stability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for desk dimensional stability | |
|---|---|---|
| GB/T 4893.8-2013 | Surface wear resistance test method for furniture finishes, applicable for finish acceptance | |
| GB/T 10357.1-2013 | Desk static load and stability test standard, applicable for structural verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for desk dimensional stability; 2. GB/T 4893.8-2013: Surface wear resistance test method for furniture finishes, applicable for finish acceptance; 3. GB/T 10357.1-2013: Desk static load and stability test standard, applicable for structural verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
