PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	1800 x 850 x 760 mm
Desktop thickness	50 mm
Edge banding thickness	2 mm
Side support panel thickness	25 mm
Knee clearance height	620 mm
Knee clearance width	760 mm
Knee clearance depth	680 mm
Front modesty panel height	350 mm
Modesty panel thickness	18 mm
Open under-top storage shelf depth	170 mm
Open storage compartment divider width	18 mm
Leveling foot diameter	25 mm
Leveling foot adjustment range	10 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	127 kg
Assembled net weight	79 kg
Recommended user weight capacity	136 kg
Surface scratch resistance rating	2000 cycles
Limited warranty period	5 years
Available color finish count	6
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	E1 grade engineered wood panel
Desktop surface	Reddish brown cherry-tone wood veneer
Edge finish	2mm PVC impact-resistant edge banding
Side panels/modesty panel	25 mm engineered wood with matching veneer
Hardware feet	PP plastic adjustable leveling glides
Storage divider	18mm matching veneer engineered wood

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Two 80mm diameter cable grommets on desktop rear
Leveling adjustment	Adjustable feet compensate for 10mm floor unevenness
Under-top storage	Two divided open compartments for document and supply storage
Privacy screening	Full-width front modesty panel blocks leg visibility from front

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Formal standalone workspace for managers and senior staff
Home office study	Dedicated traditional-style work surface for residential professional use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements
EN 13722:2004	Furniture assessment of surface resistance to abrasion
EN 312:2010	Particleboard specifications for load-bearing furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products safety and durability standard
ANSI/BIFMA X5.9-2019	Office furniture storage unit performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 4897.3-2003	Particleboard for furniture structural use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
3. GB/T 4897.3-2003: Particleboard for furniture structural use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-PNL-1800-CHY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-PNL-1800-CHY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-PNL-1800-CHYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

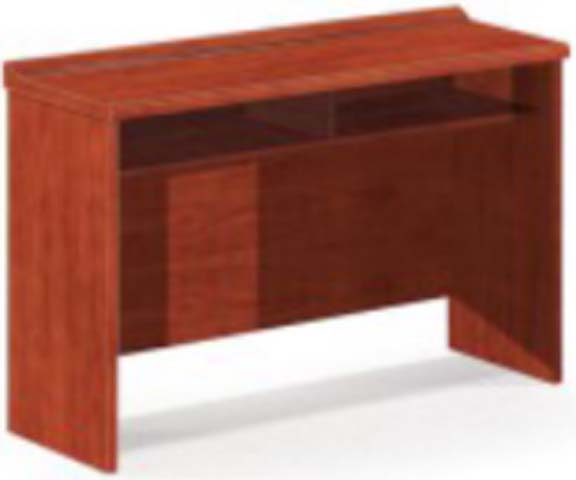

The Reddish Brown Wood Veneer Panel Executive Desk, model EXD-PNL-1800-CHY, is an unbranded panel-style executive desk rooted in traditional formal design, defined by a rich reddish brown cherry-tone wood finish that carries consistent visual warmth across every visible surface. Its layout features a broad desktop supported by matching side panels, a full-width front modesty panel, and open under-top storage positioned beneath the work surface, with a balanced, stately profile suited to professional environments.\n\nConstructed with an E1-grade engineered wood core, the desk’s desktop and structural side and modesty panels are clad in the matching reddish brown wood veneer, with 2mm impact-resistant PVC edge banding lining all exposed panel edges for a clean, finished look. The desktop sits atop side support panels, with PP plastic adjustable leveling glides fitted as hardware feet to stabilize the unit. Open under-top storage bays use 18mm matching veneer engineered wood dividers to create two separate compartments, keeping the overall construction cohesive in material and finish across all exposed components.\n\nFunctional design details support focused daily work. Two 80mm diameter cable grommets positioned at the rear of the desktop route cords for office equipment to keep work surfaces uncluttered. The adjustable feet compensate for floor unevenness to keep the desk stable on slightly irregular surfaces. The full-width front modesty panel blocks visibility of users’ legs from the front for added privacy during seated work, while the two divided open under-top compartments offer easily accessible storage for documents and frequently used work supplies. The desk holds a rated static load capacity for the desktop, supports a recommended user weight, and carries a limited warranty for long-term use, with six total finish options available to align with different interior palettes.\n\nThis desk is well suited for private executive offices as a formal standalone workspace for managers and senior staff, and also fits residential home office studies as a dedicated traditional-style work surface for professional use at home. For procurement, teams should note that each unit ships across multiple cartons, requires assembly on site, and arrives with a total packaged volume that should be accounted for in delivery and storage planning. Purchasers should also confirm finish selection prior to ordering to match existing space decor, and allocate appropriate time for on-site assembly during installation.
