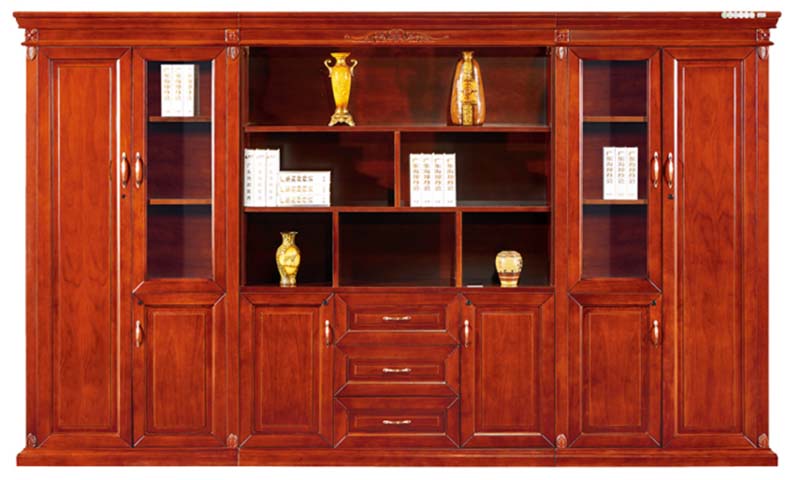

Product supplierTraditional Five-Bay Solid Wood Executive Bookcase with Display and Storage, E1 grade high-density fiberboard with 0.6mm natural wood veneer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 420 × 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 285 kg | |
|---|---|---|
| Single adjustable shelf static load capacity | 25 kg | |
| Door swing angle | 110 degrees | |
| Design service life | 10 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet core | E1 grade high-density fiberboard with 0.6mm natural wood veneer | |
|---|---|---|
| Door and frame components | Solid rubberwood edge banding and carved trim | |
| Display glass panels | 5mm clear annealed tempered glass | |
| Hardware handles | Brushed antique brass finish zinc alloy pull handles | |
| Finish coating | 3-layer matte polyurethane wood lacquer | |
| Drawer slides | Side-mounted 3-section ball bearing steel slides |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Mixed open display shelves, glass-front cabinets, solid wood doors and central drawers | |
|---|---|---|
| Shelf adjustability | Middle glass cabinet shelves support 3 height positions via metal shelf pins | |
| Locking mechanism | Keyed locks fitted to outer solid wood storage doors | |
| Carved decorative detail | Relief wood carving integrated into top central crown moulding |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office space | Positioned behind executive desk for document storage and decorative display, matching traditional wood office furniture sets | |
|---|---|---|
| Formal meeting room | Installed along rear wall for reference material storage and corporate decorative display |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements, applicable for structural stability and safety |
|---|
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality inspection; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
