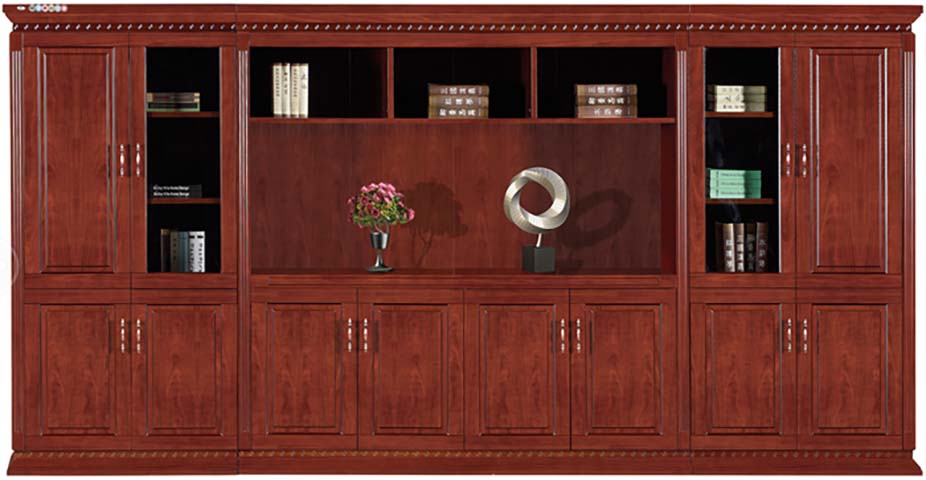

Traditional Reddish-Brown Executive Office Wall Bookcase with Display Zone (model OFB-TRD-RB-4000) is listed under Traditional Filing Cabinet, with overall dimensions of 4000 × 420 × 2200 mm and main material of MDF. Load capacity: 25 kg. Certifications: Traditional,style,mixed,open/closed,storage,wall-mounted,floor-standing,cabinet,symmetrical,modular,design. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 4000 x 420 x 2200 mm | |
|---|---|---|
| Base plinth height | 120 mm | |
| Decorative crown trim height | 80 mm | |
| Lower closed cabinet section height | 800 mm | |
| Central open display counter height | 600 mm | |
| Upper open bookshelf section height | 600 mm | |
| Outer side closed cabinet door width | 450 mm | |
| Inner open bookshelf compartment width | 400 mm | |
| Central display zone width | 1800 mm | |
| Open shelf depth | 380 mm | |
| Closed cabinet interior depth | 400 mm | |
| Adjustable shelf thickness | 18 mm | |
| Carcase side panel thickness | 25 mm | |
| Back panel thickness | 16 mm | |
| Edge banding thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit weight | 250 kg | |
|---|---|---|
| Adjustable shelf static load capacity | 25 kg | |
| Door hinge opening angle | 110 degrees | |
| Hinge cycle durability | 80000 open/close cycles | |
| Available finish color options | 3 | |
| Manufacturer warranty period | 3 years | |
| Recommended maximum uniform wall load | 300 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | 18mm E1-grade engineered wood with reddish-brown wood veneer | |
|---|---|---|
| Raised panel doors | Solid wood frame with veneered MDF center panels, stained red-brown | |
| Decorative crown and base trim | Solid hardwood carved trim with matching stained finish | |
| Door pulls | Polished zinc alloy dual-pull handles, chrome-plated finish | |
| Back panel | 16mm plywood or MDF panel with matching wood veneer finish | |
| Surface finish | Low-VOC polyurethane lacquer coating, scratch and stain resistant |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | Lower full-width closed cabinets, outer upper closed cabinets, middle open bookshelves, central open display counter | |
|---|---|---|
| Shelf adjustability | Open shelf positions adjustable via 32mm system peg holes for variable storage heights | |
| Door hardware | Concealed European-style hinges with soft-close optional, keyed locks available for secure storage | |
| Anti-tip safety | 2 wall anchor brackets included to secure unit to wall and prevent tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Placed against rear wall behind executive desk for document storage and decor display | |
|---|---|---|
| Boardroom lounge area | Used for document storage and display of corporate awards or decorative pieces |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable standard for safety and strength requirements for domestic and kitchen storage | |
|---|---|---|
| EN 312:2010 | Applicable standard for particleboard performance requirements for furniture use |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable standard for storage units durability and structural performance | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Applicable standard for furniture sustainability and chemical emission limits |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for general technical requirements of wooden furniture | |
|---|---|---|
| GB 18584-2001 | Applicable standard for formaldehyde emission limits for wooden furniture | |
| GB/T 4893.8-2013 | Applicable standard for furniture surface wear resistance testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for general technical requirements of wooden furniture; 2. GB 18584-2001: Applicable standard for formaldehyde emission limits for wooden furniture; 3. GB/T 4893.8-2013: Applicable standard for furniture surface wear resistance testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
