| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1200 x 400 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load per shelf | 30 kg | |
|---|---|---|
| Total cabinet static load capacity | 250 kg | |
| Total enclosed storage volume | 0.7 m³ | |
| Net product weight | 85 kg | |
| Recommended wall anchor load rating | 50 kg | |
| Lock mechanism cycle life | 10000 operations | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet body panels | E1 grade particleboard with walnut wood grain veneer, 18mm thickness | |
|---|---|---|
| Upper door panels | 5mm thick clear tempered glass, set in wood door frames | |
| Door pull handles | Polished zinc alloy with brushed chrome finish, single-post mounting | |
| Internal shelves | 18mm thick engineered wood with matching wood veneer, fixed mounting | |
| Lock hardware | Zinc alloy keyed cam locks, one per locking door section | |
| Edge banding | 2mm thick PVC edge banding matching wood finish, heat-sealed to all panels |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

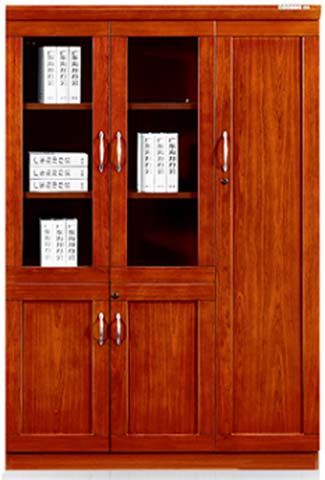

| Lockable storage | Two separate keyed locks secure upper glass section and right solid door | |
|---|---|---|
| Display storage | Clear glass upper doors keep books and binders visible while reducing dust | |
| Enclosed concealed storage | Lower solid wood doors hide stored items from direct view | |
| Right side full-height storage | Single full-height solid door provides continuous tall storage space for oversize items |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office placement | Positioned behind a desk to store reference documents and display awards | |
|---|---|---|
| General office filing storage | Used in open work areas to organize archived documents and office supplies |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable for safety requirements of office storage furniture | |
|---|---|---|
| EN 14749:2016 | Applicable for structural strength and durability of domestic and storage units |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden office furniture | |
|---|---|---|
| GB 18580-2017 | Applicable for formaldehyde emission limits for wood-based panel products | |
| GB/T 4897.3-2003 | Applicable for particleboard used in furniture structural applications |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden office furniture; 2. GB 18580-2017: Applicable for formaldehyde emission limits for wood-based panel products; 3. GB/T 4897.3-2003: Applicable for particleboard used in furniture structural applications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
