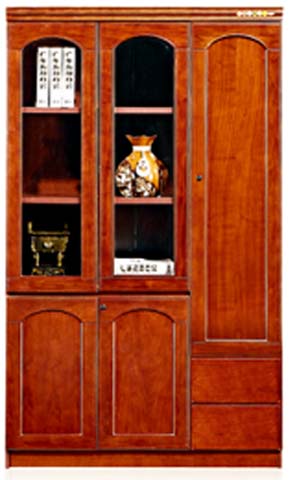

Product supplierTraditional Reddish Brown 3-Column Wooden Executive Bookcase with Arched Doors, E0-grade engineered multi-layer wood board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 330 × 2000 mm | |
|---|---|---|
| Overall assembled dimensions | 1200 x 330 x 2000 mm | |
| Upper display section height | 1180 mm | |
| Lower concealed storage height | 670 mm | |
| Display shelf clear spacing | 340 mm | |
| Display shelf panel thickness | 18 mm | |
| Glass door panel thickness | 5 mm | |
| Solid door panel thickness | 18 mm | |
| Drawer internal height per unit | 160 mm | |
| Carcass side panel thickness | 18 mm | |
| Base plinth height | 150 mm | |
| Crown molding overhang | 30 mm | |
| Right column single drawer width | 380 mm | |
| Door hinge opening angle | 110 degrees | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per shelf static load capacity | 30 kg | |
|---|---|---|
| Anti-tip wall connector load rating | 50 kg | |
| Drawer slide cycle durability | 50000 open/close cycles | |
| Door hinge cycle durability | 80000 open/close cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Available color options | 2 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass core material | E0-grade engineered multi-layer wood board | |
|---|---|---|
| Exposed surface finish | Polished reddish brown wood veneer with clear lacquer topcoat | |
| Upper display door panels | Clear tempered glass set in raised arched wood frames | |
| Door and drawer hardware | Zinc alloy keyed locks, steel butt hinges, 3-stage ball bearing slides | |
| Back panel material | 3mm thick hardboard with moisture-resistant coating | |
| Edge banding | 1mm thick matching wood veneer edge banding on all exposed panel edges |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Display storage configuration | Two upper glass-door compartments with 3 tiered shelves each for books and decor | |
|---|---|---|
| Concealed storage configuration | Two lower solid-door compartments, one full-height lockable solid door, two stacked lower drawers | |
| Shelf adjustability | Shelf supports allow 32mm increment height adjustment for display compartments | |
| Security features | Keyed lock on right full-height door secures enclosed column storage |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Provides formal display and concealed document storage behind executive desks | |
|---|---|---|
| Conference room ancillary storage | Holds reference materials, awards and meeting supplies adjacent to meeting tables |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture, applicable to structural load testing | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture | |
| EN 71-3:2019 | Migration of certain elements, applicable for surface coating safety compliance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish quality inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E0 grade ≤0.05mg/m³ for indoor office use | |
| GB/T 4893.8-2013 | Surface wear resistance test for furniture coatings, applicable to lacquer finish validation |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality inspection; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E0 grade ≤0.05mg/m³ for indoor office use; 3. GB/T 4893.8-2013: Surface wear resistance test for furniture coatings, applicable to lacquer finish validation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
