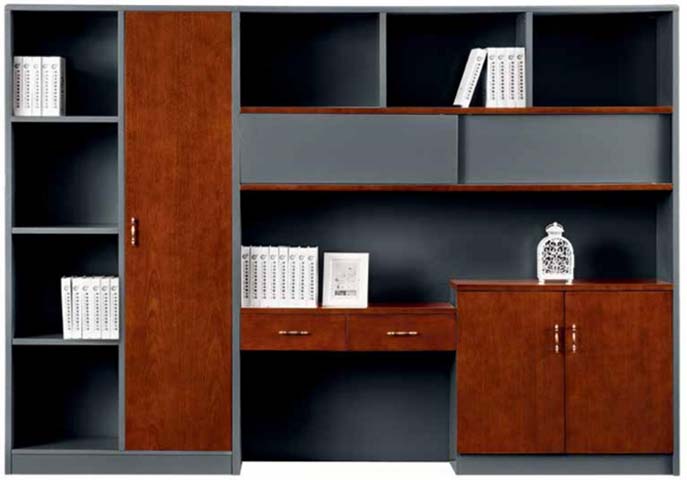

Two-Tone Gray Walnut Integrated Office Bookcase Desk Wall Unit (model OBD-2400-580-2010-TWG) is listed under Traditional Filing Cabinet, with overall dimensions of 2400 × 580 × 2010 mm and main material of MDF. Load capacity: 90 kg. Certifications: freestanding,modular,two-tone,finish,open,shelving,closed,storage,integrated,desk. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 2400 x 580 x 2010 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Under-desk knee clearance height | 650 mm | |
| Under-desk knee clearance width | 1200 mm | |
| Left open shelf section width | 500 mm | |
| Left tall closed cabinet width | 400 mm | |
| Upper open shelf tier count | 3 | |
| Left open shelf tier count | 4 | |
| Work surface drawer internal height | 120 mm | |
| Right lower double-door cabinet height | 800 mm | |
| Shelf depth for open book storage | 320 mm | |
| Kickboard base height | 100 mm | |
| Drawer face width per unit | 600 mm | |
| Upper closed compartment height | 320 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 90 kg | |
|---|---|---|
| Wall anti-tip anchoring pull-out resistance | 500 N | |
| Hinge door open angle | 110 degrees | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Hinge cycle rating | 80000 open/close cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Unit carcass and back panel | 18mm thick E1-grade particleboard with matte dark gray laminate finish | |
|---|---|---|
| Door and drawer front panels | 18mm thick MDF with walnut wood grain thermofused laminate finish | |
| Edge banding | 2mm thick PVC edge banding on all exposed panel edges | |
| Pull handles | Brushed zinc alloy bar pulls with polished bronze accent finish | |
| Drawer slides | Side-mount cold-rolled steel three-quarter extension slides | |
| Cabinet hinges | Cold-rolled steel concealed cup hinges with optional soft-close mechanism |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Combines 7 open book shelves, 3 closed cabinets, 2 desk drawers for mixed storage | |
|---|---|---|
| Seated work support | Fixed central work surface with open knee clearance for single user desk tasks | |
| Shelf adjustability | Shelf pins support 25mm incremental height adjustment for select open shelves | |
| Anti-tip safety | Includes 2 wall anchor straps to secure tall unit to wall studs preventing tip-over |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Serves as all-in-one workspace, book storage and supply cabinet for single professional use | |
|---|---|---|
| Home office study | Provides compact full-wall work and storage solution for residential work spaces |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to cabinet and shelf structural safety | |
|---|---|---|
| EN 14074:2004 | Office work surfaces and storage stability and strength test methods | |
| EN 312:2010 | Particleboard performance specification for furniture-grade panel use |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture durability and safety standard for office use | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard applicable to work surface |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to unit structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade requirement for indoor use | |
| GB/T 4897.3-2003 | Performance requirement for particleboard used in furniture construction |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to unit structural performance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade requirement for indoor use; 3. GB/T 4897.3-2003: Performance requirement for particleboard used in furniture construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
