PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product weight	135 kg
Shelf static load capacity	30 kg per shelf
Anti-tip anchorage load rating	100 kg
Door hinge cycle rating	50000 open/close cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main frame and panels	Engineered wood core with 0.6mm red oak wood veneer, polished lacquer finish
Shelf surfaces	25mm veneered particleboard or MDF, edge-banded with solid wood trim
Cabinet doors	18mm raised MDF panels with solid wood edge molding, matching lacquer finish
Door handles	Polished zinc alloy pull handles, brushed silver metallic finish
Back panel	9mm medium density fiberboard with matching wood grain laminate
Door hinges	Cold-rolled steel concealed adjustable hinges, nickel plated

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Asymmetrical 7-bay upper open display shelving, 4-door lower enclosed concealed storage
Shelf adjustability	Upper open shelves fixed to asymmetrical display layout, lower cabinet shelves adjustable at 32mm increments
Door operation	Side-hinged doors swing outward 110 degrees for full interior access, fitted with magnetic catches
Installation requirement	Wall-mounted anti-tip bracket included for secure anchoring to prevent forward tipping

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office space	Placed behind executive desks for document storage and decorative display of achievement items
Formal meeting or boardroom space	Used along walls to store reference materials and corporate decorative pieces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units and worktops - safety requirements, applicable for structural stability verification
EN 12521:2015	Furniture - strength, durability and safety for domestic storage furniture, applicable for load performance testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to dimensional and finish quality acceptance
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, required for formaldehyde emission verification
GB/T 4893.4-2013	Test method for surface wear resistance of furniture finishes, applicable for lacquer surface durability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and finish quality acceptance;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, required for formaldehyde emission verification;
3. GB/T 4893.4-2013: Test method for surface wear resistance of furniture finishes, applicable for lacquer surface durability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BC-TRD-2000HY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BC-TRD-2000HY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BC-TRD-2000HYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

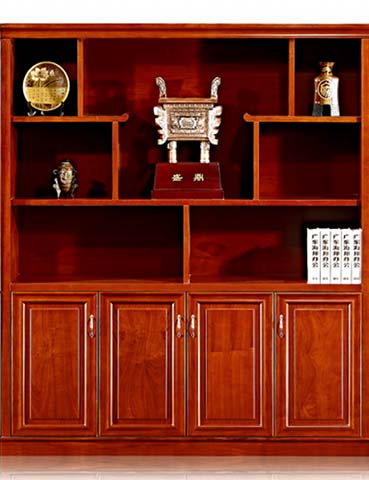

Visually, the piece features a structured asymmetrical layout, with upper open display shelves arranged in a 7-bay configuration that creates dynamic visual interest, paired with a lower section of four closed cabinet doors for a balanced, formal silhouette. The warm red oak veneer is finished with polished lacquer, complemented by solid wood trim along shelf edges and raised panel door molding, accented by brushed silver polished zinc alloy pull handles for a refined, cohesive traditional look. The bookcase is built for long-term regular use, with a 25mm thick engineered wood core carcass and matching 25mm thick shelves edged in solid wood trim, an 18mm raised MDF door front with solid wood edge molding, and a 9mm MDF back panel finished with matching wood grain laminate. Hardware includes nickel-plated cold-rolled steel concealed adjustable hinges, with a hinge life rating supporting 80000 open/close cycles at a 165 degree maximum opening angle, while side-hinged doors swing outward 110 degrees fitted with magnetic catches for unobstructed interior access. Each static shelf supports a 30kg distributed load, the included anti-tip anchorage carries a 100kg load rating, and drawer slides support 45kg per pair with a 50000 cycle service life. Its storage design combines fixed asymmetrical upper open shelves ideal for curated display, with lower cabinet shelves adjustable at 32mm increments to accommodate items of varying sizes. A wall-mounted anti-tip bracket is included for secure installation. The piece is well suited for placement behind executive desks in executive office spaces, where it holds documents and displays achievement awards or decorative pieces, as well as for wall mounting in formal meeting or boardroom spaces to store reference materials and corporate decorative items. For procurement, note the unit ships as one set across cartons, with a 40 minute per set reference assembly time, 135kg total product weight, and 2000 x 400 x 2000 mm overall dimensions to confirm fit for intended installation sites.

Traditional Style Asymmetrical Open Shelf Wooden Display Bookcase with Lower Closed Cabinet Doors
