PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	930 × 480 × 2200 mm
Overall cabinet dimensions	930 x 480 x 2200 mm
Left full-height door width	460 mm
Right section width	470 mm
Shelf depth	300 mm
Upper open arched shelf height	380 mm
Middle open shelf height	520 mm
Lower open shelf height	480 mm
Right lower solid door height	820 mm
Door panel thickness	18 mm
Carcass side panel thickness	18 mm
Shelf panel thickness	18 mm
Back panel thickness	9 mm
Clear height inside enclosed door compartments	350 mm per shelf
Base plinth height	60 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static load per fixed shelf	30 kg
Total cabinet static load capacity	180 kg
Unit net weight	80 kg
Door hinge cycle rating	50000 open/close cycles
Door lock key differ count	200 unique combinations
Finish abrasion resistance	2000 cycles
Anti-tip restraint load rating	50 kg pull force
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass and door panels	18mm thick medium density fiberboard with 0.6mm reddish-brown wood veneer
Finish coating	High-gloss scratch-resistant polyurethane lacquer
Door hinges	Cold-rolled steel concealed hinges with nickel plating
Locking mechanisms	Zinc alloy keyed cam locks fitted to both solid doors
Shelf panels	18mm thick veneered particleboard with matching edge banding
Back panel	9mm thick hardboard with matching wood grain overlay

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Left full-height enclosed compartment, right three-tier open display shelves, right lower enclosed compartment
Door operation	Hinged solid wood doors open 110 degrees outward for full access to interior shelves
Security feature	Keyed locks on both enclosed compartments secure confidential documents and stored items
Display function	Three open fixed shelves on right bay accommodate decor and frequently referenced materials

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office installation	Placed against wall behind executive desk for secure file storage and decorative display
Boardroom ancillary storage	Positioned at side of meeting room to store meeting materials and display cultural artifacts

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture, safety and strength requirements for free-standing cabinets
EN 14074:2004	Office storage furniture, test methods for strength and durability of moving parts

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural performance and finish quality
GB/T 4893.8-2013	Test method for surface abrasion resistance of wooden furniture finishes
GB 18584-2001	Limit of harmful substances in wooden furniture for indoor use, applicable to formaldehyde emission

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural performance and finish quality;
2. GB/T 4893.8-2013: Test method for surface abrasion resistance of wooden furniture finishes;
3. GB 18584-2001: Limit of harmful substances in wooden furniture for indoor use, applicable to formaldehyde emission;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-AR0948220-WD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-AR0948220-WD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-AR0948220-WDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

Its polished reddish-brown finish delivers a warm, formal visual presence, with a split layout balancing enclosed storage and open display space: the left bay holds a full-height enclosed compartment behind a solid framed door, while the right bay features three tiered fixed open shelves topped by an arched upper display edge, with a lower enclosed compartment below the open shelf section. Each solid door opens 110 degrees outward via concealed hinges to allow unobstructed access to interior storage space. The cabinet is constructed with durable, matching materials across all components. The carcass and door panels use 18mm thick medium density fiberboard faced with 0.6mm reddish-brown wood veneer, shelf panels are 18mm thick veneered particleboard with color-matched edge banding, and the back panel is 9mm hardboard with a coordinating wood grain overlay. All exposed surfaces are coated in high-gloss scratch-resistant polyurethane lacquer for a smooth, polished appearance. Hardware includes nickel-plated cold-rolled steel concealed hinges, zinc alloy keyed cam locks fitted to both solid doors, and included anti-tip restraint hardware. Each fixed open shelf supports 30kg of static load, with a total cabinet static load capacity of 180kg. The locks offer 200 unique key combinations to secure confidential documents and stored items, while the three open shelves hold frequently referenced materials and decorative display pieces. The finish resists abrasion across 2000 use cycles, and hinges are rated for 50000 open-close cycles for long-term regular use. The unit is well suited for placement against the wall behind an executive desk for secure file storage and curated display, or positioned along the perimeter of a boardroom to hold meeting materials and showcase cultural artifacts. When procuring this unit, note that assembly requires 40 minutes per set, shipped across split cartons with a total packaged gross weight of 100kg and total packaging volume of 0.65 cubic meters per set. The finished unit weighs 80kg, so installation should plan for appropriate wall anchoring using the included anti-tip restraint to meet safety requirements, with clear floor space to accommodate the outward-swinging doors. The 300mm shelf depth is sized to fit standard office binders, reference books, and display pieces without protruding into walkways.

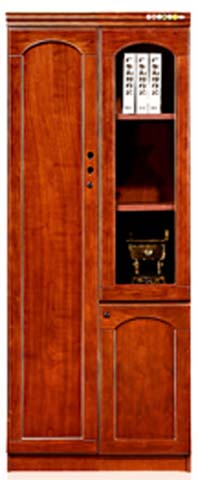

Classical Reddish-Brown Wooden Office Storage Bookcase with Arched Locking Doors and Open Display Shelves
