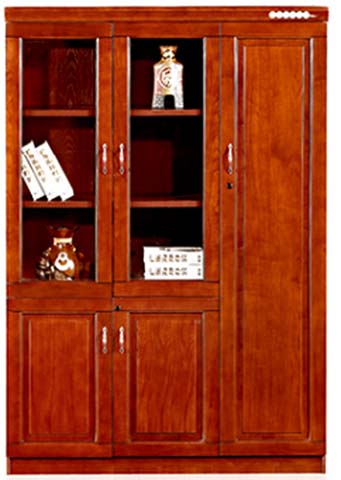

Product supplierThree-Column Reddish Brown Lockable Wooden Office Bookcase with Tempered Glass Upper Doors, 18mm E1 grade engineered wood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 420 × 2000 mm | |
|---|---|---|
| Overall unit dimensions | 1200 x 420 x 2000 mm | |
| Single storage column width | 400 mm | |
| Base plinth height | 80 mm | |
| Top trim overhang height | 50 mm | |
| Glass door section height | 1100 mm | |
| Lower solid door section height (left columns) | 770 mm | |
| Full-height solid door height (right column) | 1870 mm | |
| Adjustable shelf count (glass section) | 3 tiers per column | |
| Shelf vertical spacing (glass section) | 350 mm | |
| Internal shelf depth | 380 mm | |
| Door panel thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Tempered glass panel thickness | 5 mm | |
| Edge banding thickness | 6 mm | |
| Handle length | 120 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per shelf static load capacity | 30 kg | |
|---|---|---|
| Door hinge open angle | 110 degrees | |
| Hinge cycle durability | 50000 cycles | |
| Drawer slide load rating | 25 kg | |
| Finish scratch resistance | Grade 1 | |
| Formaldehyde emission grade | E1 | |
| Hardware salt spray resistance | 48 hours | |
| Net product weight | 85 kg | |
| Warranty period | 5 years | |
| Available color options | 5 finishes |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass core material | 18mm E1 grade engineered wood | |
|---|---|---|
| Surface finish | 0.6mm natural wood veneer with low-gloss PU paint | |
| Door panel construction | Engineered wood frame with solid wood edging | |
| Glass door panels | 5mm clear tempered safety glass | |
| Hardware components | Zinc alloy handles, steel locks, corrosion-treated hinges/slides | |
| Shelf material | 18mm engineered wood with matching veneer finish |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage zoning | Split open-display and concealed storage | |
|---|---|---|
| Locking system | Integrated keyed locks on all solid door sections | |
| Shelf adjustability | Adjustable shelves in glass-fronted sections | |
| Anti-tip safety | 2 wall-mounted anti-tip connectors |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office application | Suitable for placement behind executive desks to store documents and display accolades | |
|---|---|---|
| General office document storage | Appropriate for administrative areas to organize files, books and office supplies |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements, applicable to anti-tip provisions | |
|---|---|---|
| EN 12521:2015 | Furniture - strength, durability and safety for domestic storage furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage Furniture - Tests for strength, durability, and stability applicable to office storage units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural tolerances | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to engineered wood core performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural tolerances; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable to engineered wood core performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
