PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Uniform static load per horizontal shelf	35 kg
Top surface static load capacity	50 kg
Total cabinet net weight	85 kg
Hinge open/close cycle rating	50000 cycles
Door lock cam static shear load	50 kg
Finish abrasion resistance	2000 cycles
Anti-tip connector required quantity	2
Maximum recommended total storage load	315 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass substrate	E1 grade engineered particle board with wood veneer overlay
Display door panels	Clear tempered safety glass with polished edges
Door hardware	Zinc alloy vertical pull handles, brass keyed cam locks, steel hinges
Surface finish	Scratch-resistant PU wood paint in reddish-brown cherry tone
Back panel	Medium density fiberboard (MDF) with matching wood grain laminate
Edge banding	2 mm thick PVC edge banding matching wood finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door access configuration	1 full-height left solid lockable door, 2 upper hinged glass display doors, 2 lower hinged solid lockable doors
Locking mechanism	Keyed cam locks installed on left full-height door and right lower solid door for secured storage
Display storage function	Glass-front upper sections have 3 adjustable shelves for books, awards and decorative display items
Concealed storage function	Solid-door enclosed compartments provide dust-protected storage for confidential documents, files and office supplies

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Applicable office spaces	Executive offices, meeting rooms, administrative areas, open office work zones
Suitable use cases	Document filing, book storage, award and decorative item display, confidential material storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office furniture - Storage furniture - Safety requirements, applicable for structural stability
EN 14074-2004	Office furniture - Storage furniture - Test methods for strength and durability
EN 12521:2015	Furniture - Strength, durability and safety requirements for non-domestic storage furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage Cabinets, standard for load capacity, stability, and durability of office storage units
ANSI/BIFMA e3-2019	Furniture sustainability standard, applicable for material emissions and material content requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional tolerance and structural integrity
GB/T 4893.1-2021	Surface abrasion resistance test for furniture surfaces, applicable for paint finish durability
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, applicable for formaldehyde and heavy metal limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional tolerance and structural integrity;
2. GB/T 4893.1-2021: Surface abrasion resistance test for furniture surfaces, applicable for paint finish durability;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, applicable for formaldehyde and heavy metal limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OBC-RB-5DGL1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OBC-RB-5DGL1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OBC-RB-5DGL1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

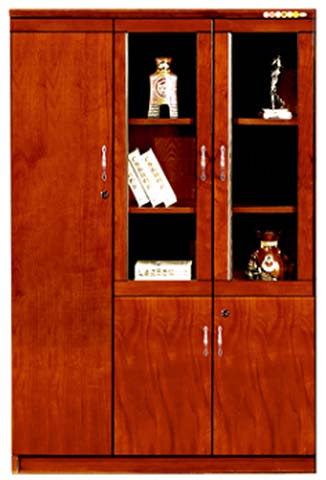

This 5-Door Lockable Wooden Office Bookcase Storage Cabinet features a cohesive reddish-brown cherry wood grain finish that blends structured display functionality with secured closed storage, balancing professional visual appeal and practical utility. Its layout is organized to support dual storage needs: a full-height solid door runs the length of the left side, while the right section splits horizontally into two upper hinged glass doors and two lower hinged solid doors, creating distinct visual zones between open display and concealed storage, with a matching plinth base that lends a grounded, polished look to the overall form. The cabinet is built with durable, purpose-selected materials: its main carcass uses E1 grade engineered particle board overlaid with wood veneer, finished with scratch-resistant PU paint, while back panels are medium density fiberboard with matching wood grain laminate, edged with 2mm PVC banding that coordinates with the wood finish. Upper display doors are made of polished-edge clear tempered safety glass, fitted with zinc alloy vertical pull handles, steel hinges, and brass keyed cam locks on designated solid door compartments. Horizontal shelves and main carcass panels are built to support consistent weight loads, while the PU finish offers resistance to routine surface wear, and hinges are rated for repeated long-term use. Two anti-tip connectors are required for safe installation. Functionally, the upper glass-front sections include adjustable shelves to hold books, awards, and decorative display pieces, while the locked solid-door compartments provide dust-protected, secured space for confidential documents, files, and general office supplies. This cabinet is well suited for a range of commercial spaces including executive offices, meeting rooms, administrative areas, and open office work zones, supporting core needs for document filing, book storage, curated display, and confidential material holding. For procurement planning, note that each unit ships in multiple cartons, requires assembly on site, and includes all necessary hardware for installation.

5-Door Lockable Wooden Office Bookcase Storage Cabinet, Reddish Brown Wood Grain
