Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cabinet dimensions | 1200 x 450 x 2000 mm | |
|---|---|---|
| Upper glass door section height | 1100 mm | |
| Glass door panel thickness | 5 mm | |
| Left lower solid door compartment height | 700 mm | |
| Right full-height solid door width | 400 mm | |
| Right section drawer internal height | 160 mm | |
| Adjustable shelf thickness | 25 mm | |
| Structural side/door panel thickness | 18 mm | |
| Back panel thickness | 16 mm | |
| Shelf vertical clearance | 330 mm | |
| Solid wood edge banding thickness | 6 mm | |
| Handle length | 120 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total cabinet gross weight | 120 kg | |
|---|---|---|
| Per adjustable shelf static load capacity | 30 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Drawer slide cycle rating | 50000 cycles | |
| Paint surface hardness | 2H | |
| Wood component moisture content | 12% | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass substrate | E1 grade MDF substrate with insect and corrosion treatment | |
|---|---|---|
| Surface finish | 0.6 mm natural walnut wood veneer with water-based paint finish | |
| Upper door panels | Clear tempered glass panels set in solid wood framed door rails | |
| Hardware components | Brushed nickel-finish zinc alloy bar pulls, hinges, lock and slides | |
| Edge treatment | Solid wood edge banding on all exposed panel edges to resist impact | |
| Internal shelves | Adjustable veneered engineered wood shelves with metal support pegs |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

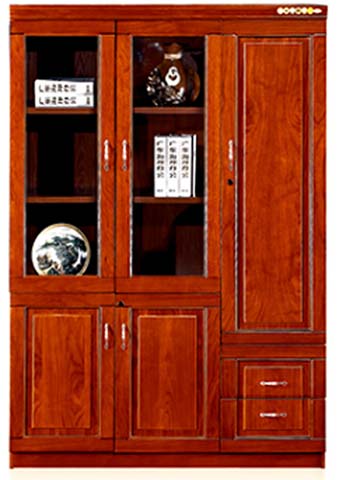

| Door configuration | Two upper hinged glass doors, two left lower hinged solid doors, one right full-height hinged solid door | |
|---|---|---|
| Locking mechanism | Keyed cam lock fitted to right full-height door for secure document storage | |
| Drawer function | Two stacked lower right drawers on ball-bearing slides for small item storage | |
| Shelf adjustability | Multi-position adjustable shelves in glass and solid compartments for flexible storage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office space | Placed against back wall for document and book storage behind management desks | |
|---|---|---|
| General office document storage | Used in open office or meeting areas to store files, books and display items |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable to office storage furniture safety and strength requirements | |
|---|---|---|
| EN 12521:2015 | Applicable to domestic and commercial furniture durability and stability standards |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable to office storage cabinets performance and durability test standards |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to wooden office furniture general technical requirements for dimensions and stability | |
|---|---|---|
| GB 18584-2001 | Applicable to formaldehyde emission limits for wooden interior decoration materials | |
| GB/T 4897.3-2003 | Applicable to particleboard/MDF performance requirements for furniture use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to wooden office furniture general technical requirements for dimensions and stability; 2. GB 18584-2001: Applicable to formaldehyde emission limits for wooden interior decoration materials; 3. GB/T 4897.3-2003: Applicable to particleboard/MDF performance requirements for furniture use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
