PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 400 × 2000 mm
left full-height solid door width	540 mm
upper glass door individual width	265 mm
lower solid door individual width	265 mm
plinth base height	100 mm
clear glass panel thickness	5 mm
door panel thickness	18 mm
adjustable shelf count in glass sections	5
shelf vertical clearance	330 mm
interior usable depth	360 mm
pull handle length	120 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

single shelf static load capacity	45 kg
hinge open/close cycle rating	80000 cycles
lock mechanism cycle rating	10000 cycles
product net weight	120 kg
standard warranty period	5 years
available finish color options	1
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

cabinet carcass and door panels	18mm E1 grade wood composite with red-brown wood veneer finish
upper door panels	5mm clear tempered glass set in framed wood surrounds
door hardware	Brushed zinc alloy pull handles with brass key cylinders
adjustable shelves	18mm thick wood composite panels with metal shelf support pins
back panel	5mm thick hardboard fixed to rear frame for structural stability
base plinth	Solid wood composite frame finished to match cabinet doors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

locking system	Keyed locks secure left full-height door and right lower solid door compartment
door operation	All doors are hinged to open 110 degrees outward for full interior access
shelf adjustability	Interior shelves in glass compartments adjust vertically on 32mm pitch holes
installation type	Freestanding floor-standing unit with required anti-tip wall anchoring

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

executive office application	Suited for manager/executive offices as background filing and book storage
document storage function	Designed to store A4/letter binders, archived files, reference books, and office supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture safety requirements, applicable for freestanding cabinet stability
EN 14074:2004	Office storage furniture test methods for strength and durability of moving parts
EN 71-3:2019	Migration of certain elements, required for surface coating safety in commercial environments

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture standard for strength, durability, and stability for office use
ANSI/BIFMA e3-2019	Furniture sustainability standard for material emissions and chemical content

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural and finish quality verification
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wood furniture, required for indoor office use
GB/T 4893.4-2013	Surface furniture film adhesion test method, applicable for wood finish durability acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality verification;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood furniture, required for indoor office use;
3. GB/T 4893.4-2013: Surface furniture film adhesion test method, applicable for wood finish durability acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-WD-5DR-GL-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-WD-5DR-GL-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-WD-5DR-GL-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

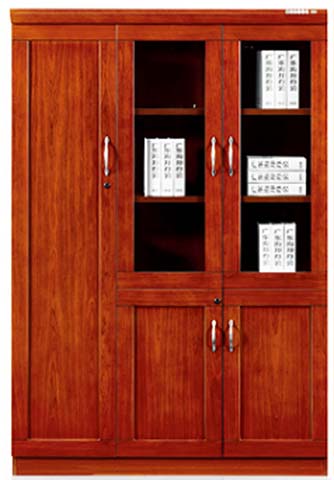

This Red Brown 5-Door Wooden Office Bookcase Filing Cabinet is a freestanding, traditional executive-style storage unit balancing professional visual appeal with robust utility. Its asymmetric layout features a full-height solid door spanning 540mm on the left, paired with four equal-width 265mm doors on the right: two upper doors fitted with clear glass panels, and two matching lower solid doors. All components sit atop a 100mm integrated plinth base, lending a grounded, formal silhouette suited to premium workspaces, with an overall dimension of 1600 x 400 x 2000 mm. The cabinet’s 18mm E1 grade wood composite carcass, door panels, adjustable shelves, and plinth base are finished in a consistent red-brown wood veneer, with upper sections incorporating 5mm clear tempered glass set in framed wood surrounds. Brushed zinc alloy pull handles, brass key cylinders, metal shelf support pins, and a 5mm hardboard rear panel complete the construction, delivering structural stability and a polished, cohesive look. Hinges are rated for 80000 open/close cycles, with locks rated for 10000 cycles, and a 5-year standard warranty covers the unit. Practical functionality is designed for organized office storage: keyed locks secure the left full-height compartment and right lower solid door section for private document storage, while all hinged doors open 110 degrees outward to allow unobstructed interior access. The five adjustable shelves in glass-fronted sections use 32mm pitch holes for customizable vertical spacing, supporting up to 45kg static load or 30kg distributed load per shelf, ideal for A4 and letter-size binders, archived files, reference books, and general office supplies. This unit is best suited for manager and executive offices as a background storage and display piece, where it complements formal office decor while keeping materials accessible.

Red Brown 5-Door Wooden Office Bookcase Filing Cabinet with Lock
