Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

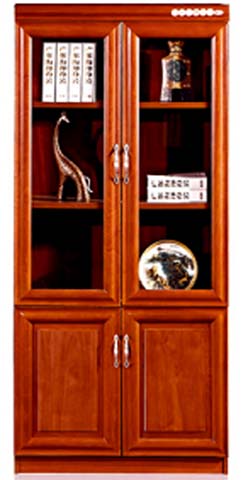

| Overall dimensions | 800 x 380 x 2000 mm | |
|---|---|---|
| Upper display section height | 1340 mm | |
| Lower closed storage section height | 660 mm | |
| Upper glass door panel size per leaf | 360 x 1280 mm | |
| Lower solid door panel size per leaf | 360 x 600 mm | |
| Upper adjustable shelf clear spacing | 320 mm | |
| Glass door frame molding width | 60 mm | |
| Plinth base height | 60 mm | |
| Top crown trim height | 40 mm | |
| Interior cabinet clear width per compartment | 340 mm | |
| Pull handle length | 120 mm | |
| Shelf thickness | 20 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per shelf static load capacity | 30 kg | |
|---|---|---|
| Hinge open-close cycle rating | 50000 cycles | |
| Door hinge opening angle | 110 degrees | |
| Finish abrasion resistance | 2000 cycles | |
| Unit net weight | 75 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main cabinet frame | Solid rubber hardwood with warm walnut clear lacquer finish | |
|---|---|---|
| Upper door panels | 5mm thick clear tempered glass set in raised wood frames | |
| Lower door panels | 18mm thick engineered wood core with solid wood veneer raised panels | |
| Interior shelves | 20mm thick solid wood edged engineered wood panels | |
| Back panel | 5mm thick plywood back panel for structural rigidity | |
| Hardware pulls | Brushed silver zinc alloy bar-style pull handles |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper storage function | Three position-adjustable shelves behind clear glass doors for book and decor display | |
|---|---|---|
| Lower storage function | Fixed position shelf behind solid raised-panel doors for concealed document and item storage | |
| Door operation | Dual pairs of center-split hinged doors open outward via paired metal pull handles | |
| Safety feature | Wall-mounted anti-tip anchor included to prevent forward tipping for tall floor-standing unit |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office executive workspace | Fits behind or beside executive desks for document storage and award/decor display | |
|---|---|---|
| Home study or private library | Stores hardcover books, collectibles and personal documents in residential workspaces |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic and office storage furniture, applicable to structural stability | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture, applicable to office use |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish quality acceptance | |
|---|---|---|
| GB/T 4893.4-2013 | Surface wear resistance test method for furniture finishes, applicable to lacquer durability verification | |
| GB 28007-2011 | Safety requirements for children's furniture, applicable to anti-tip and edge safety if used in public spaces |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality acceptance; 2. GB/T 4893.4-2013: Surface wear resistance test method for furniture finishes, applicable to lacquer durability verification; 3. GB 28007-2011: Safety requirements for children's furniture, applicable to anti-tip and edge safety if used in public spaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
