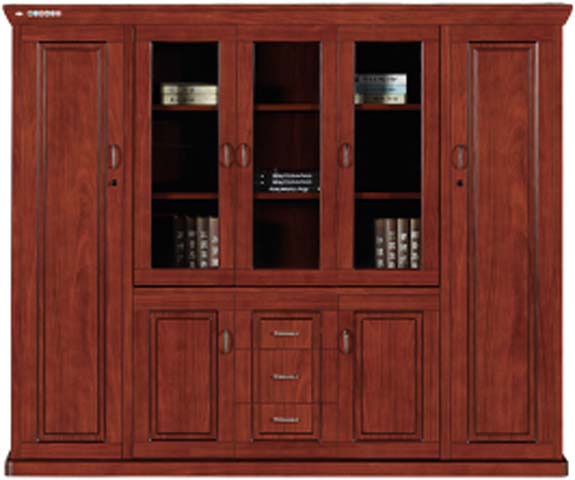

Traditional Wooden Executive Office Bookcase Cabinet with Glass Display and Storage (model OBC-TRD-2400-REDWD) is listed under Traditional Filing Cabinet, with overall dimensions of 2400 × 420 × 2000 mm and main material of MDF. Load capacity: 30 kg. Certifications: Traditional,style,closed,storage,glass,display,doors,multi-compartment. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 420 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit weight | 185 kg | |
|---|---|---|
| Per shelf static load capacity | 30 kg | |
| Recommended maximum uniform load per full section | 150 kg | |
| Hardware cycle rating for doors/drawers | 50000 open/close cycles | |
| Standard warranty period | 3 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet frame and panels | 18mm E1-grade medium density fiberboard with 0.6mm red wood veneer, matte polyurethane finish | |
|---|---|---|
| Upper display doors | 5mm clear tempered glass set in solid wood veneer frames, polished edge treatment | |
| Door and drawer handles | Brushed zinc alloy pull handles with antique bronze finish matching wood tone | |
| Internal shelves | 25mm veneered engineered wood, edge-banded with matching wood trim | |
| Drawer slides | Full-extension ball-bearing steel slides, zinc plated for corrosion resistance | |
| Door locks | Brass keyed cam locks on outer side solid doors, keyed alike for unified access |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage compartment layout | 2 full-height side closed cabinets, 3 upper glass display bays, 2 lower closed cabinets, 3 central drawers | |
|---|---|---|
| Adjustable shelf configuration | Removable shelves in glass display zones allow height adjustment for variable item sizes | |
| Lockable storage access | Outer side solid doors include keyed locks for secure confidential document storage | |
| Drawer function | 3 stacked central drawers provide small item and file storage with full-extension slides |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 2450 x 470 x 220 mm, 1250 x 470 x 380 mm, 450 x 470 x 620 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office placement | Positioned against a wall behind an executive desk to store books, files, and decorative display items | |
|---|---|---|
| Conference room storage | Installed in formal conference rooms to hold meeting materials, reference documents, and display credentials |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
