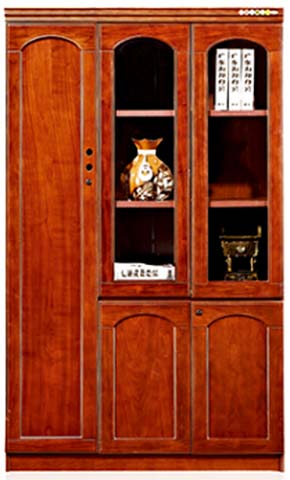

Name: Traditional Cherry Finish 3-Bay Wooden Office Bookcase with Arched Glass Display Doors
Brand: HAIBANG
SKU: GY2Y8P

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 400 × 2380 mm
Left full-height solid door bay width	1000 mm
Middle and right individual bay width	1000 mm each
Upper glass door section height	1350 mm
Lower solid door section height	830 mm
Crown molding top trim height	100 mm
Plinth base height	100 mm
Usable internal shelf depth	370 mm
Adjustable shelf spacing	350 mm
Glass door arched top rise	100 mm
Solid door panel thickness	18 mm
Back panel thickness	9 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	20 kg
Keyed lock security rating	Grade 3 office cabinet lock
Hinge open cycle rating	80000 cycles
Product net weight	272 kg
Anti-tip restraint load rating	50 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet frame and panels	18mm cherry veneer engineered wood with multi-layer polyurethane finish
Upper display doors	Arched clear 5mm tempered glass panels set in solid wood frames
Door hardware	Antique brass-finish steel hinges, keyed cylinder lock, and door pulls
Internal shelves	18mm adjustable wood shelves with metal support pins
Top and base trim	Solid wood crown molding and raised plinth base with routed edges
Back panel	9mm hardboard dust back with tongue-and-groove slot fitting

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Shelf adjustability	8 adjustable shelves with 32mm hole spacing for variable storage heights
Door operation	All doors hinged to open 110 degrees, left bay lock secures full-height storage
Display storage function	Glass upper doors provide dust-protected open display for books and decor
Anti-tip safety	2 wall anchor brackets included to secure unit to wall studs and prevent tipping

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Provides book storage and locked document storage behind desk for senior staff
Study or home library	Stores hardcover books and displays decorative collectibles in traditional interiors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic and office storage furniture, applicable for tipover testing
EN 12521:2015	Strength, durability and safety requirements for office storage furniture
EN 13722:2004	Test methods for strength and durability of furniture storage units

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Safety and performance standard for office storage units, applicable for commercial use
ANSI/BIFMA e3-2019	Furniture sustainability standard for material emissions and lifecycle assessment

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural performance verification
GB 18584-2001	Limit of formaldehyde emission for wooden furniture, applicable for indoor air quality compliance
GB/T 4893.9-2013	Surface abrasion resistance test for furniture finishes, applicable for durability validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural performance verification;
2. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable for indoor air quality compliance;
3. GB/T 4893.9-2013: Surface abrasion resistance test for furniture finishes, applicable for durability validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BC-TRD-CHY-3BAY-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BC-TRD-CHY-3BAY-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BC-TRD-CHY-3BAY-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The HAIBANG Traditional Cherry Finish 3-Bay Wooden Office Bookcase, model BC-TRD-CHY-3BAY-001, delivers classic, functional storage aligned with traditional interior design sensibilities. Its stately visual profile features a decorative solid wood crown molding atop the unit and a raised, routed-edge solid wood plinth base, creating a polished, built-in aesthetic suited to formal spaces. The layout splits evenly across three equal 1000mm bays: the left bay holds a full-height solid door, while the middle and right bays divide into an upper arched glass display section and lower solid door storage section, creating balanced visual weight between open display and concealed storage.\n\nConstructed for long-term office use, the cabinet frame and panels use 18mm cherry veneer engineered wood finished with multiple layers of polyurethane for a smooth, durable surface. Upper display doors hold 5mm arched clear tempered glass set in solid wood frames, fitted with antique brass-finish steel hinges, keyed cylinder locks, and matching pulls. Internal 18mm adjustable wood shelves rest on metal support pins, while the rear uses a 9mm hardboard dust back fitted with tongue-and-groove slots for a tight, clean fit. Each shelf supports 20kg of static load, or 30kg of evenly distributed weight; hinges are rated for 80000 open cycles, and the Grade 3 office cabinet lock secures the left full-height bay. All doors open 110 degrees for easy access, and two included wall anchor brackets provide anti-tip protection with a 50kg load rating to prevent accidental tipping. The 8 adjustable shelves use 32mm hole spacing to accommodate items of varying heights, with upper glass doors shielding displayed books and decor from dust while maintaining clear visibility.\n\nThis freestanding bookcase is ideally suited for executive private offices, where it provides organized book storage and locked document storage positioned behind desks for senior staff, as well as residential studies or home libraries with traditional decor schemes, where it can store hardcover collections and showcase decorative collectibles. Procurement teams should note the unit ships across multiple cartons, requires 40 minutes of assembly per set, and has a net weight of 272kg, requiring appropriate placement planning and secure wall installation to leverage its anti-tip safety features.

Traditional Cherry Finish 3-Bay Wooden Office Bookcase with Arched Glass Display Doors
