PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1350 × 440 × 2200 mm
Overall cabinet dimensions	1350 x 440 x 2200 mm
Left full-height solid door width	450 mm
Right two bays upper glass door height	1250 mm
Right two bays lower solid door height	750 mm
Interior shelf depth	400 mm
Adjustable shelf clearance between tiers	350 mm
Base plinth height	100 mm
Top panel thickness	25 mm
Carcass side panel thickness	18 mm
Glass door panel thickness	5 mm
Solid door panel thickness	18 mm
Adjustable shelf thickness	25 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	35 kg
Door hinge open angle	110 degrees
Hinge cycle durability	80000 cycles
Coating surface abrasion resistance	2000 cycles
Net product weight	125 kg
Warranty period	5 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass core material	18mm medium-density fiberboard
Exterior finish	Red walnut wood veneer with multi-coat polished lacquer
Upper door panels	5mm clear tempered glass set in wood frames
Door hardware	Polished zinc alloy pull handles, keyed cam lock on left door
Interior shelves	25mm veneered engineered wood, adjustable on metal shelf pins
Edge detailing	1mm matching wood veneer edge banding, raised framed panel on solid doors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	1 left full-height locked solid compartment, 2 right bays with upper glass display and lower closed storage
Shelf adjustability	3 adjustable shelves per glass upper section, 1 adjustable shelf per lower solid section
Locking feature	Keyed lock secures left full-height compartment for confidential document storage
Door operation	Hinged swing doors open outward for full interior access, metal hinges with soft-close option

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office space	Suits manager/executive offices for document storage and decorative display
Office document room	Provides locked storage for confidential files and open display for reference materials

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture, safety and strength requirements for storage cabinets
EN 12521:2015	Furniture, strength, durability and safety requirements for domestic and office storage

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture standard, applicable for shelf load and structural durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional and structural acceptance
GB/T 4893.1-2021	Surface abrasion resistance test method for furniture coatings, minimum 2000 cycle requirement
GB 18584-2001	Limit of harmful substances in wooden furniture, mandatory formaldehyde and heavy metal limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural acceptance;
2. GB/T 4893.1-2021: Surface abrasion resistance test method for furniture coatings, minimum 2000 cycle requirement;
3. GB 18584-2001: Limit of harmful substances in wooden furniture, mandatory formaldehyde and heavy metal limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-BK-3SEC-RW-1350

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-BK-3SEC-RW-1350

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-BK-3SEC-RW-1350Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Red Walnut 3-Section Lockable Office Wooden Bookcase Filing Cabinet is a purpose-built storage solution that blends traditional executive styling with versatile mixed open and closed storage functionality. Its layout follows a three-section configuration: a single full-height solid door compartment occupies the left side, while two adjacent right-side bays pair upper glass-fronted display zones with lower solid-door closed storage, creating a balanced visual profile suited to formal professional environments. The exterior is finished in rich red walnut wood veneer over an MDF core, sealed with multiple coats of polished lacquer for a smooth, refined surface. Clear tempered glass panels set in matching wood frames form the upper right doors, complemented by polished zinc alloy pull handles and consistent 1mm wood veneer edge banding that creates a seamless, finished look across all surfaces. Raised framed panel detailing on solid doors adds subtle textural depth aligned with classic executive office design language. Construction centers on an 18mm medium-density fiberboard carcass, topped with a thick 25mm top panel, supported by a solid base plinth, and fitted with 25mm veneered engineered wood interior shelves that sit on adjustable metal shelf pins. Each upper glass section includes three adjustable shelves, while each lower solid section includes one adjustable shelf, allowing users to reconfigure interior spacing to accommodate items of varying heights. Hinged swing doors open outward to provide full access to interior spaces, with hinges that support a wide opening angle and offer a soft-close option for smooth, quiet operation. A keyed cam lock secures the full-height left compartment, creating dedicated space for confidential document storage, while the glass-fronted upper sections allow visible display of reference materials, awards, or curated decor, and lower closed sections conceal less frequently used items or supplies. The unit is well suited for installation in manager and executive offices, where it supports both practical document organization and decorative display, as well as office document rooms that require a combination of locked secure storage for sensitive files and accessible open storage for regularly referenced materials. For procurement planning, note that the unit ships in split cartons, with a noted reference assembly time per set, and is covered by a five-year warranty. Each shelf supports rated static and distributed loads to accommodate standard office supplies, bound documents, and display items, with durable hardware tested for repeated long-term use and a lacquer coating formulated to resist regular surface abrasion from daily contact. The unit’s substantial net weight supports stable, long-term placement in high-use professional settings without risk of shifting or tipping under normal use.

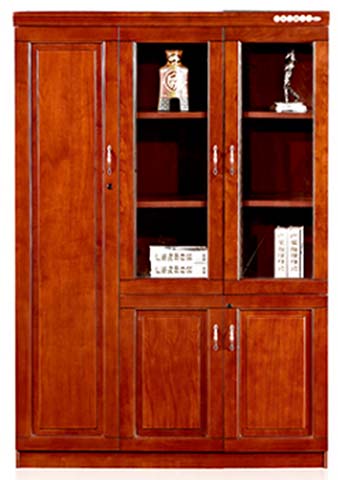

Red Walnut 3-Section Lockable Office Wooden Bookcase Filing Cabinet
