PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 400 × 2000 mm
Central open display section width	1080 mm
Outer solid-door bay width	510 mm each
Inner glass-front bay width	450 mm each
Open display shelf tier height	360 mm each
Glass door shelf internal height	340 mm each
Lower cabinet door height	720 mm
Central drawer height	220 mm each
Shelf depth	350 mm
Base plinth height	80 mm
Top crown molding height	60 mm
Glass panel thickness	5 mm
Carcass panel thickness	18 mm
Back panel thickness	9 mm
Door panel thickness	20 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static load per shelf	30 kg
Static load per drawer	25 kg
Top surface static load	50 kg
Unit total net weight	380 kg
Hinge open/close cycle rating	80000 cycles
Drawer slide cycle rating	50000 cycles
Finish surface hardness	H grade
Substrate moisture content	12%
Standard warranty period	10 years
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass substrate	E1 grade MDF engineered wood
Surface finish	0.8 mm red mahogany wood veneer, 5-coat PU lacquer
Edge banding	6 mm solid wood edge trim
Display door panels	5 mm clear tempered glass, framed with wood veneer trim
Hardware components	Zinc alloy pull handles, steel hinges, anti-rust treated slides
Back panel	9 mm MDF with black matte finish in glass display bays

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door operation	Hinged swing doors with 110-degree opening angle, optional key locks
Drawer operation	3 central drawers with side-mounted ball-bearing slides, full extension
Shelf adjustability	Adjustable shelf heights in all glass and solid door bays, 32mm hole spacing
Anti-tip safety	2 wall-mounted anti-tip connectors included for floor-standing installation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total shipment volume	0.83 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office background placement	Installed behind executive desk as matching background storage and display unit
Document and display storage	Stores bound documents, awards, and decorative pieces in combined open/closed bays

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office furniture - Storage furniture - Safety requirements
EN 12727:2000	Office furniture - Storage cabinets - Mechanical safety test methods

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage Furniture - Tests for safety, durability, and structural performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 18580-2017	Formaldehyde emission limits for wood-based panels used in interior decoration
GB 18581-2020	Limit of harmful substances for polyurethane wood coatings
GB/T 3324-2017	General technical requirements for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in interior decoration;
2. GB 18581-2020: Limit of harmful substances for polyurethane wood coatings;
3. GB/T 3324-2017: General technical requirements for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EX-BOOK-3600-RED-5BAY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EX-BOOK-3600-RED-5BAY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EX-BOOK-3600-RED-5BAYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

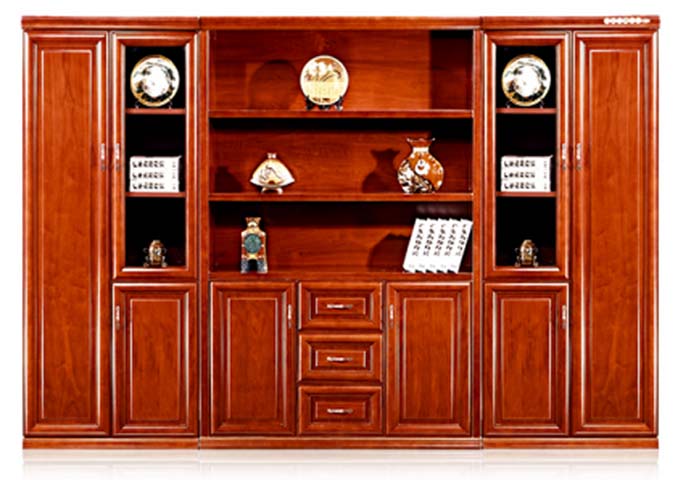

Its symmetrical layout balances display and concealed storage across five distinct bays: a wide central open display section flanked by two pairs of bays, with inner glass-front display bays adjacent to the center and outer solid-door storage bays at each end. The rich red mahogany finish creates a polished, timeless visual profile suited to traditional executive decor, with clean, balanced lines that anchor a room without visual clutter.
The cabinet is built for lasting durability with high-quality, office-grade materials. Its core carcass uses E1 grade MDF engineered wood, clad in 0.8 mm red mahogany wood veneer finished with five coats of PU lacquer for a smooth, resilient surface rated H for hardness. Edges are trimmed with 6 mm solid wood to resist impact wear, while display doors use 5 mm clear tempered glass framed in matching wood veneer. Hardware includes zinc alloy pull handles, steel hinges, and anti-rust treated drawer slides, with 9 mm matte black MDF back panels lining glass display bays to create a high-contrast backdrop for displayed items.
Functionality is tailored to executive office needs, with clearly defined storage zones. The central open section holds frequently referenced items or decorative displays, while glass-front bays showcase awards, curated collections, or bound reference materials with adjustable shelves set at 32 mm spacing for flexible configuration. Outer solid-door bays conceal less frequently accessed documents or supplies, and three central full-extension drawers with side-mounted ball-bearing slides offer organized storage for small office essentials. Hinged swing doors open to a 110-degree angle for easy interior access, with optional key locks for secure storage, and two wall-mounted anti-tip connectors are included for stable floor-standing installation. Each shelf supports a 30 kg static load, each drawer holds 25 kg, and the top surface supports 50 kg, with hardware tested to 80,000 hinge cycles and 50,000 drawer slide cycles for long-term use.
This cabinet is designed for placement directly behind an executive desk as a cohesive background storage and display unit, ideal for storing bound documents, awards, and decorative pieces across its mixed open and closed storage zones. When procuring, note the unit ships across multiple cartons, requires 40 minutes of assembly per set, and must be secured to the wall with the included anti-tip hardware for safe installation. The total net weight of the assembled unit is 380 kg, requiring appropriate floor load capacity and sufficient clearance for its full 3600 mm width, 400 mm depth, and 2000 mm height in the intended installation space.

Traditional Mahogany Red 5-Bay Executive Office Bookcase Storage Cabinet
