PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	980 × 470 × 2400 mm
Overall unit dimensions	980 x 470 x 2400 mm
Left bay width	430 mm
Right full-height solid door width	490 mm
Upper glass door height	1400 mm
Lower left solid door height	800 mm
Adjustable shelf quantity	5
Shelf clear spacing	340 mm
Top crown molding projection	40 mm
Base plinth height	100 mm
Carcass panel thickness	25 mm
Back panel thickness	4 mm
Door glass thickness	5 mm
Handle length	96 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	100 kg
Shelf static load capacity	25 kg
Hinge cycle rating	80000
Door lock load rating	500 N
Anti-tip restraint load rating	50 kg
Recommended maximum total storage load	250 kg
Product warranty	5 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass and door panels	25 mm kiln-dried hardwood/engineered wood with reddish-brown stain
Display door panels	5mm clear framed glass set in wood door frames
Back panel	4mm plywood panel fitted to rear of carcass
Hardware components	Brushed metal pull handles, steel hinges, optional keyed locks
Edge and molding details	Contrasting light-colored wood trim molding on door panels and frames
Surface finish	Multi-layer clear coated wood finish with stain protection

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage zoning	Left upper glass-enclosed display zone, left lower concealed storage, right full-height concealed storage
Shelf adjustability	Shelves supported by metal pegs, repositionable to variable heights
Door operation	Hinged doors swing outward 110 degrees, fitted with magnetic catches
Stability system	Wall-mounted anti-tip restraint secures cabinet to prevent forward tipping

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office back wall storage	Fits behind manager/executive desks for document storage and award/decor display
Private study or home office storage	Provides combined display and concealed storage for books, files and personal items

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture safety requirements, applicable for stability and load performance
EN 14073-3:2004	Office storage furniture test methods for stability and structural strength
EN 12521:2015	Domestic furniture strength requirements, applicable for non-heavy-duty private office use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Standard for storage furniture, applicable for commercial office load and durability testing
ANSI/BIFMA e3-2019	Furniture sustainability standard, applicable for material emissions and environmental claims

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerance
GB/T 4893.4-2013	Surface abrasion resistance test for furniture finishes, applicable for coated wood surfaces
GB 28007-2011	Safety requirements for children's furniture, applicable for anti-tip and edge safety for public spaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerance;
2. GB/T 4893.4-2013: Surface abrasion resistance test for furniture finishes, applicable for coated wood surfaces;
3. GB 28007-2011: Safety requirements for children's furniture, applicable for anti-tip and edge safety for public spaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFB-TRD-2BAY-2400R

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFB-TRD-2BAY-2400R

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFB-TRD-2BAY-2400ROpen Export Tool

Quick Actions

Post an RFQ

Product Description

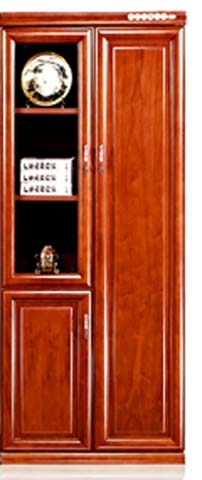

The Traditional Executive Two-Bay Office Bookcase blends timeless formal styling with functional, zone-specific storage, anchored by a balanced mixed-door layout that balances open display and concealed storage. Its tall upright form is defined by structured two-bay framing, finished in a warm reddish-brown wood tone accented by contrasting light-colored wood trim across door panels and frames, topped with a subtle projecting crown molding that lends a polished, traditional executive aesthetic. The left bay pairs upper framed glass doors with lower solid raised-panel doors, while the right bay holds a single full-height solid raised-panel door, creating a visually balanced, intentional storage facade. Constructed for long-term office use, the bookcase’s carcass and solid door panels use thick kiln-dried hardwood and engineered wood sealed with a multi-layer clear, stain-resistant coating. Display sections use clear framed glass set within matching wood door frames, while the rear of the unit is fitted with a plywood backing for structural rigidity. All operational components use durable metal hardware, including brushed pull handles, steel hinges, and optional keyed locks for secured storage. Storage is organized into three distinct, user-friendly zones: an upper left glass-enclosed display area for curated items, a lower left concealed compartment, and a full-height right concealed storage space for less frequently accessed materials. Five repositionable shelves, supported by metal pegs, can be adjusted to accommodate items of varying heights, while hinged doors swing outward smoothly and hold closed with integrated magnetic catches. A wall-mounted anti-tip restraint is included to secure the unit and prevent forward tipping for safe, stable installation. This bookcase is well-suited for placement against the back wall of executive offices, positioned behind manager or executive desks to hold work documents alongside displayed awards and decorative pieces. It also functions effectively in private residential studies or home offices, providing flexible combined storage for books, personal files, and household items. Procurement teams and buyers should note the unit ships across multiple cartons, with straightforward assembly that takes a short time to complete per set. The product carries a 5-year warranty, and weight ratings for shelves, door locks, and anti-tip hardware should be reviewed to align with intended storage use before installation.

Traditional Executive Two-Bay Office Bookcase with Mixed Glass and Solid Raised-Panel Doors
