Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 900 x 400 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit gross weight | 75 kg | |
|---|---|---|
| Per shelf static load capacity | 25 kg | |
| Recommended maximum total load | 190 kg | |
| Anti-tip anchoring load rating | 50 kg pull force | |
| Door hinge cycle durability | 50000 open/close cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.

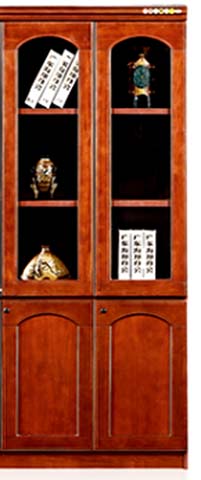

| Main frame and stiles | Solid hardwood frame with cherry-toned wood veneer finish | |
|---|---|---|
| Internal shelves and back panel | 18mm thick medium-density fiberboard with matching wood veneer | |
| Upper door panels | 5mm thick clear tempered glass set in wood frames | |
| Lower door panels | Raised engineered wood panels with matching veneer and arched trim | |
| Door hardware | Zinc alloy keyed cam locks and concealed butt hinges | |
| Base and crown trim | Solid wood molding with stain-matched finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Display storage configuration | Upper glazed doors provide 6 open display tiers for collectibles and books | |
|---|---|---|
| Concealed storage configuration | Lower solid doors provide 2 closed storage compartments for items not on display | |
| Door locking | Two keyed locks secure both lower doors to restrict access to closed storage | |
| Wall anchoring | Anti-tip hardware included for wall mounting to prevent tipping when loaded |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office placement | Position against wall behind or adjacent to executive desk for books, awards and document storage | |
|---|---|---|
| Formal reception area display | Used in reception or lounge areas to display decorative items, corporate honors and reading materials |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
