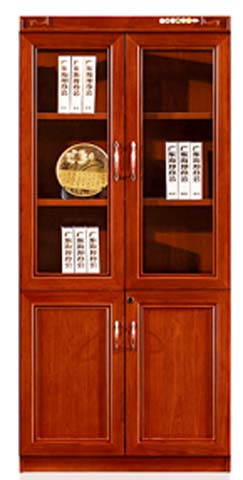

Product supplierDouble-Door Wooden Office Bookcase with Upper Glass Display and Lower Closed Storage, 18mm E1 grade medium density fiberboard with 0.6mm red wood veneer finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| single shelf static load capacity | 30 kg | |
|---|---|---|
| net product weight | 85 kg | |
| document storage capacity | 120 standard A4 lever arch files | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| cabinet carcass | 18mm E1 grade medium density fiberboard with 0.6mm red wood veneer finish | |
|---|---|---|
| upper door panels | 5mm clear tempered glass set in solid wood veneer frames | |
| lower door panels | 18mm veneered MDF with raised panel edge detailing | |
| hardware handles | Brushed zinc alloy pull handles with polished chrome edge trim | |
| shelf panels | 18mm veneered MDF with metal shelf support pins | |
| lock mechanism | Integrated 3-position cam lock securing both lower doors |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| upper glass door access | Two hinged clear glass doors open outward to access open display shelving for books and decor | |
|---|---|---|
| lower door security | Two hinged solid wood doors with central key lock to secure confidential stored materials | |
| shelf adjustability | All upper shelves are height-adjustable via 32mm spaced support holes to accommodate items of varying heights | |
| anti-tip provision | Pre-drilled wall anchor bracket included to secure cabinet to wall and prevent tipping under uneven load |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| shipping carton dimensions | 980 x 480 x 2100 mm | |
|---|---|---|
| shipping gross weight | 95 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| executive office application | Suitable for placement behind executive desks to store reference books, awards and confidential documents | |
|---|---|---|
| meeting room application | Suitable for meeting room walls to display corporate credentials, training materials and meeting supplies |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable European standard for safety and performance of domestic and office storage furniture | |
|---|---|---|
| EN 12150-1:2015 | Applicable standard for thermally toughened soda lime silicate safety glass used in door panels |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for general technical requirements of wooden furniture, recommended for final quality inspection | |
|---|---|---|
| GB 18580-2017 | Applicable standard for formaldehyde emission limits from wood-based panels, recommended for material acceptance | |
| GB/T 4893.9-2013 | Applicable standard for furniture surface abrasion resistance testing, recommended for finish durability verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for general technical requirements of wooden furniture, recommended for final quality inspection; 2. GB 18580-2017: Applicable standard for formaldehyde emission limits from wood-based panels, recommended for material acceptance; 3. GB/T 4893.9-2013: Applicable standard for furniture surface abrasion resistance testing, recommended for finish durability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
