Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1524 x 457 x 2311 mm | |
|---|---|---|
| Left upper glass door width | 400 mm | |
| Middle upper glass door width | 400 mm | |
| Right full-height solid door width | 450 mm | |
| Upper display zone height | 1372 mm | |
| Lower closed cabinet height | 737 mm | |
| Clear glass panel thickness | 5 mm | |
| Interior shelf depth | 406 mm | |
| Adjustable shelf hole pitch | 32 mm | |
| Kickplate height | 102 mm | |
| Lower solid door panel thickness | 18 mm | |
| Top surface usable depth | 420 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single display shelf static load capacity | 25 kg | |
|---|---|---|
| Hinge open/close cycle rating | 80000 cycles | |
| Recommended maximum total unit load | 240 kg | |
| Assembly required time for two adults | 90 minutes | |
| Product net weight reference | 76 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and door panels | E1 grade engineered wood with reddish-brown wood veneer, polyurethane scratch-resistant finish | |
|---|---|---|
| Upper door inserts | Clear tempered glass, secured in molded wood door frames | |
| Door hardware | Zinc alloy polished silver bar pull handles, self-closing concealed hinges | |
| Back panel | 3 mm thick hardboard, with pre-cut rear cable management notch | |
| Shelves | 18 mm thick veneered particleboard, supported by metal shelf pins in pre-drilled holes | |
| Base construction | Solid wood kickplate with integrated floor levelers for uneven surface adjustment |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

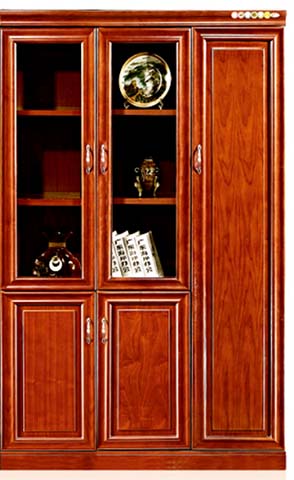

| Door configuration | 2 left bays have split upper glass display doors / lower solid storage doors, 1 right full-height solid storage door, total 5 hinged doors | |
|---|---|---|
| Shelf adjustability | 3 adjustable shelves per glass display section, 1 adjustable shelf per lower closed cabinet, 32 mm incremental height adjustment | |
| Anti-tip safety | 2 wall-mounted anti-tip restraint straps included to secure cabinet to wall and prevent forward tipping | |
| Cable management | Pre-cut rear notch in back panel allows power cords for display lighting or small devices on interior shelves |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office placement | Positioned behind or adjacent to executive desk for book storage, award display and secured document storage | |
|---|---|---|
| Conference room or waiting area storage | Used to display corporate artifacts, reference materials and store office supplies in formal meeting spaces |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic and office storage furniture | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Safety and performance standard for office storage units, applicable for commercial use cases |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification | |
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, applicable for finish durability check |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality inspection; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification; 3. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable for finish durability check; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
