| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1800 x 400 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per shelf static load capacity | 35 kg | |
|---|---|---|
| Net product weight | 145 kg | |
| Lock mechanism durability | 10000 lock cycles | |
| Shelf deflection limit at rated load | 3 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass | 18mm E1 grade medium density fiberboard with cherry wood veneer finish | |
|---|---|---|
| Door frames | Solid rubberwood trim with arched top edge detail | |
| Upper display doors | 5mm clear tempered glass panels set in wood frames | |
| Shelves | 18mm veneered engineered wood, adjustable via metal shelf pins | |
| Hardware | Zinc alloy cam locks, steel shelf pins, steel hinges | |
| Base and top trim | Solid wood molded crown and plinth with matched veneer finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

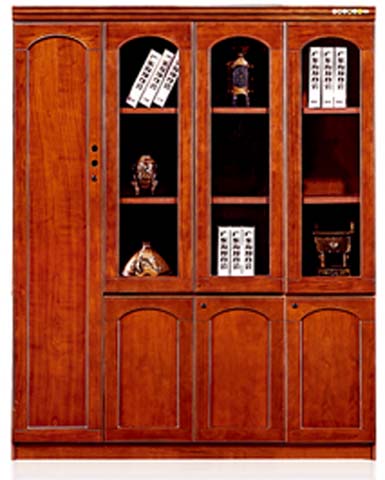

| Upper display storage | Three glass-fronted bays with 3 adjustable shelves each for visible book and decor storage | |
|---|---|---|
| Lower closed storage | Three solid wood doors enclosing concealed storage space for files and supplies | |
| Left full-height storage | Full-height solid door with 3-position lock for secure private document storage | |
| Adjustable shelving | Metal pin-supported shelves allow height adjustment to accommodate items of varying sizes |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Matches traditional wood office furniture suites for display of awards, reference books and decor | |
|---|---|---|
| Conference room anteroom | Provides locked document storage and display space for meeting materials and corporate artifacts |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture, applicable for load and stability testing | |
|---|---|---|
| EN 12521:2015 | Strength, durability and stability requirements for contract office furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard, applicable for shelf load and structural durability verification |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural quality acceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required E1 grade for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural quality acceptance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required E1 grade for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
