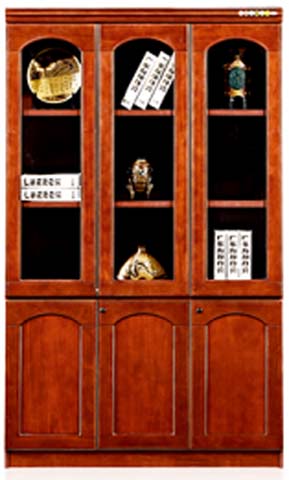

Name: Traditional Mahogany-Tone 6-Door Display Bookcase with Lower Storage
Brand: HAIBANG
SKU: R8AHMT

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1525 × 490 × 2270 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

single adjustable upper shelf static load	91 kg
lower cabinet fixed shelf static load	68 kg
overall cabinet net weight	150 kg
hinge open angle	110 degrees
hinge cycle rating	50000 cycles
recommended total loaded weight	450 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

main frame construction	Kiln-dried solid hardwood with mahogany veneer, polished reddish-brown finish
upper door panels	Clear flat glass with arched top edge, set in wood door frames
lower door panels	Solid wood raised arched panels with framed edge detailing
internal shelves	Finished solid mahogany-veneer wood, adjustable on metal peg supports
hardware components	Polished metal door knobs, metal shelf support pegs, optional keyed locks
edge banding	0.8 mm thick matching wood veneer edge tape on all exposed panel edges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

upper storage function	Three glass-enclosed bays with adjustable shelves for dust-protected book and decor display
lower storage function	Three solid-door enclosed cabinets for concealed storage of files and less frequently used items
shelf adjustment	Metal peg supports allow upper shelf height reconfiguration to accommodate tall items
door operation	Side-hinged doors swing outward to provide full access to interior compartments

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

executive office application	Placed behind executive desks for book, file and decorative display matching traditional formal office decor
library/study application	Used as freestanding library storage for bound books and curated collectible display

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Applicable safety and performance requirements for domestic and office storage furniture
EN 12521:2015	Applicable strength, durability and stability requirements for office storage furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden furniture, including dimensional stability and finish quality
GB/T 4893.1-2021	Applicable for furniture surface wear resistance testing for finished wood surfaces
GB 28007-2011	Applicable for anti-tip safety requirements for tall freestanding storage furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture, including dimensional stability and finish quality;
2. GB/T 4893.1-2021: Applicable for furniture surface wear resistance testing for finished wood surfaces;
3. GB 28007-2011: Applicable for anti-tip safety requirements for tall freestanding storage furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DISP-BK-3G3S-2270

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DISP-BK-3G3S-2270

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DISP-BK-3G3S-2270Open Export Tool

Quick Actions

Post an RFQ

Product Description

The HAIBANG Traditional Mahogany-Tone 6-Door Display Bookcase with Lower Storage, model DISP-BK-3G3S-2270, is a stately wooden public furniture piece designed for refined, high-use settings. Visually, it features a balanced 3+3 door configuration, with three glass-fronted upper bays paired with three solid-door lower cabinets. The upper glass panels have gently arched top edges set within polished wood frames, while the lower doors showcase solid wood raised arched panels with framed edge detailing, all finished in a warm, polished reddish-brown mahogany tone that anchors traditional formal interiors. At 1525 x 490 x 2270 mm, its upright, symmetrical layout creates a commanding, organized visual presence suitable for prominent placement. Constructed for long-term durability, the bookcase uses a kiln-dried solid hardwood frame clad in mahogany veneer, with core panels made from MDF. Carcass panels and internal shelves measure 25 mm thick, with 22 mm thick door and drawer fronts, a 9 mm back panel, and 0.8 mm thick matching wood veneer edge tape covering all exposed edges to prevent wear. Hardware includes polished metal door knobs, metal shelf support pegs, and optional keyed locks. Hinges are rated for 50000 open/close cycles with a 110-degree swing angle for unobstructed access, and each adjustable upper shelf supports a 91 kg static load, with a 30 kg distributed load rating per shelf; lower fixed shelves hold 68 kg, with a total recommended loaded weight of 450 kg for the full unit. Functionally, the upper glass-enclosed bays feature adjustable shelves that can be repositioned via metal peg supports to accommodate tall decor or volumes, while providing dust-protected display for books and curated items. The three lower solid-door cabinets offer concealed storage for files and less frequently used materials, keeping clutter out of sight while maintaining a cohesive exterior look. Side-hinged doors swing outward to grant full access to all interior compartments. This bookcase is ideally suited for placement behind executive desks in traditional formal office spaces, where it complements classic decor while storing books, files, and decorative pieces. It also works as freestanding storage in private libraries or dedicated study spaces, supporting organized bound book storage and collectible display. For procurement, note that each unit ships across cartons split to match the carcass design, with a packaged gross weight of 100 kg per set and total packaging volume of 0.65 m³. On-site assembly requires 40 minutes per set, and buyers may select optional keyed locks if secured storage is required for sensitive materials.
