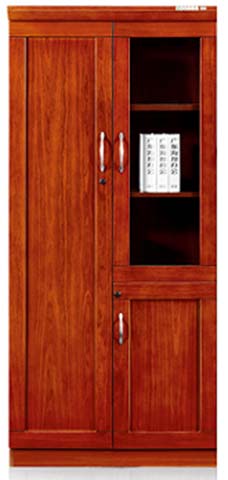

Name: Red Brown Wood Veneer 3-Door Lockable Office Storage Cabinet with Glass Display Section
Brand: HAIBANG
SKU: T2CM7H

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1350 × 420 × 2000 mm
Left solid door section width	800 mm
Right section width	550 mm
Plinth base height	80 mm
Top panel thickness	25 mm
Carcass panel thickness	15 mm
Glass door panel height	1120 mm
Lower right solid door height	700 mm
Glass shelf spacing inside display section	330 mm
Edge banding thickness	1 mm
Internal shelf depth	380 mm
Door handle length	120 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	30 kg
Full cabinet net weight	140 kg
Shelf count	5 total (2 in left solid section, 3 in glass display section)
Recommended maximum storage capacity	80 standard A4 document binders
Door hinge open angle	110 degrees
Hinge cycle rating	80000 open/close cycles
Finish abrasion resistance	2000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	E1 grade engineered wood substrate, 15mm thickness, MDF core
Exterior finish	Red brown natural wood veneer, UV cured paint coating, smooth satin sheen
Upper right door panel	5mm thick clear tempered glass, framed with wood veneer edging
Door hardware	Brushed chrome plated zinc alloy pull handles, integrated keyed cam locks
Internal shelves	15mm thick melamine-faced engineered wood, adjustable on metal shelf pins
Back panel	5mm thick hardboard, fixed with staples to carcass rear frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Locking system	Two independent keyed cam locks securing left full-height doors and right lower door
Shelf adjustability	Adjustable shelves with 32mm spaced pin holes to accommodate varying document heights
Door operation	Hinged swing doors with concealed soft-close optional hinges for quiet operation
Anti-tip protection	2 steel anti-tip wall anchors included to secure cabinet to wall and prevent tipping

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Provides locked document storage and display for formal executive workspaces
General office document room	Stores organized filed records with both open display and locked closed storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture safety requirements, applicable to structural stability checks
EN 14074-2004	Office furniture storage units test methods, applicable to durability and load verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture performance standard, applicable to commercial office durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to dimensional and structural quality checks
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to substrate material acceptance
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable to core material verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality checks;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to substrate material acceptance;
3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to core material verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WOSC-3DR-GLS-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WOSC-3DR-GLS-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WOSC-3DR-GLS-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

The HAIBANG model WOSC-3DR-GLS-2000 is a floor-standing 3-door wooden office storage cabinet designed to balance secure enclosed storage and visible display functionality. Presented in a warm red brown natural wood veneer finish with a smooth satin sheen from UV cured paint coating, the cabinet adopts a split vertical layout: a full-height solid door section occupies the left portion, while the right portion pairs an upper glass-fronted display zone with a lower solid door compartment, all elevated on a streamlined plinth base. The upper right glass door is framed with matching wood veneer edging, fitted with 5mm thick clear tempered glass, and complemented by brushed chrome plated zinc alloy pull handles for a cohesive, professional visual profile. Constructed for stable long-term office use, the cabinet’s core carcass uses E1 grade engineered wood panels with an MDF core, with 15mm thick carcass panels and a 25mm thick top panel. Internal shelves are 15mm thick melamine-faced engineered wood, adjustable via 32mm spaced metal pin holes to accommodate items of varying heights. The 5mm thick hardboard back panel is secured to the rear frame, and two steel anti-tip wall anchors are included to secure the unit to walls for added safety. Door hardware runs on hinges rated for repeated open-close cycles, with optional concealed soft-close hinges available for quiet operation, and two independent keyed cam locks secure the left full-height compartment and right lower solid door to protect stored contents. The cabinet holds five total shelves split between the two sections, with a static load capacity per shelf sufficient for standard office supplies and documents, and total capacity to hold 80 standard A4 document binders. It integrates seamlessly into executive private offices, where it provides both locked storage for confidential materials and glass-fronted space to display awards, reference materials or curated items, and also suits general office document rooms for organized filed record storage that combines accessible visible reference and secured closed filing. Procurement teams should note the unit ships split across multiple cartons per set, with an 40-minute assembly time per unit. Wall anchor installation is recommended for all installations to mitigate tipping risk, and buyers should account for the cabinet’s net weight when planning placement and floor load requirements, as well as verify hinge specification preferences when ordering to align soft-close functionality with space needs.

Red Brown Wood Veneer 3-Door Lockable Office Storage Cabinet with Glass Display Section
