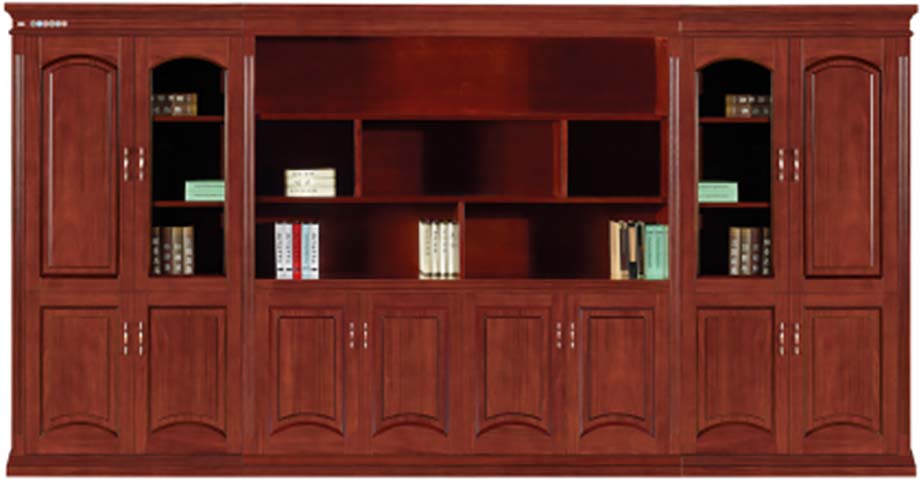

Traditional Red-Brown Wood Veneer Executive Office Wall Bookcase with Lower Closed Storage (model EXEC-BK-5SEC-2400RED) is listed under Traditional Filing Cabinet, with overall dimensions of 2400 × 400 × 2000 mm and main material of MDF. Load capacity: 30 kg. Certifications: traditional,formal,style,symmetrical,5-section,layout,lower,raised-panel,doors,upper,open,shelving,crown,molding,trim. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| Side section width per column | 400 mm | |
| Central open section width | 800 mm | |
| Lower closed cabinet height | 800 mm | |
| Upper open shelving height | 1150 mm | |
| Crown molding trim height | 50 mm | |
| Shelf depth | 370 mm | |
| Adjustable shelf spacing range | 320 mm | |
| Side arched open shelf bay internal height | 700 mm | |
| Lower cabinet internal shelf height | 360 mm | |
| Raised panel door thickness | 20 mm | |
| Carcass side panel thickness | 18 mm | |
| Base plinth height | 50 mm | |
| Total number of closed cabinet doors | 12 | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Shelf static load capacity | 30 kg | |
|---|---|---|
| Unit net weight | 250 kg | |
| Recommended maximum uniform top load | 60 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Formaldehyde emission grade | E1 | |
| Paint surface abrasion resistance | 1000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass substrate | 18mm thick high-density fiberboard | |
|---|---|---|
| Surface finish | 0.8mm thick natural wood veneer with multi-coat semi-gloss red-brown PU paint | |
| Door panels | 20mm thick raised MDF panels with veneer overlay | |
| Hardware pulls | Polished chrome-plated zinc alloy vertical bar handles | |
| Hinges | Cold-rolled steel concealed soft-close cabinet hinges | |
| Shelf supports | Nickel-plated steel adjustable shelf pegs |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Side-hung raised panel doors open 110 degrees for full access to lower storage | |
|---|---|---|
| Shelf adjustability | Open shelves support 320mm pitch height adjustment via metal pegs | |
| Modular assembly | 5 pre-finished modules join on site with connecting brackets for wall installation | |
| Anti-tip protection | 2 steel anti-tip wall anchors secure the unit to prevent forward tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office background wall | Installed behind executive desks for document storage and formal display aesthetic | |
|---|---|---|
| High-end conference room storage | Used for reference material storage and decorative display in formal meeting spaces |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office furniture - storage furniture, safety requirements for office use | |
|---|---|---|
| EN 14073-3:2004 | Office furniture - storage furniture, test methods for stability and structural strength |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of formaldehyde emission in wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of formaldehyde emission in wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
