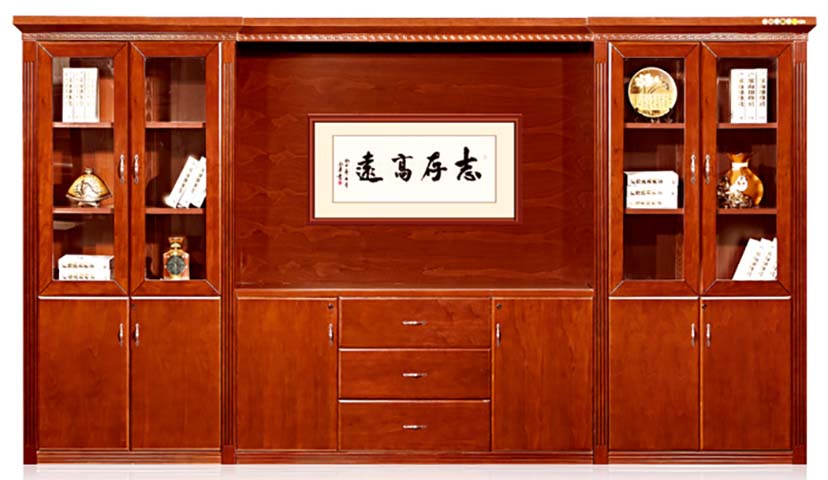

Name: Red-brown Solid Wood Veneer Executive Office Bookcase Wall Unit
Brand: HAIBANG
SKU: UGU597

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3800 × 450 × 2100 mm
Overall unit dimensions	3800 x 450 x 2100 mm
Left/right side section width	1000 mm per section
Central section width	1800 mm
Lower cabinet door height	800 mm
Upper glazed door section height	1100 mm
Top cornice trim height	100 mm
Plinth base height	100 mm
Display shelf clearance	350 mm
Central drawer internal height	180 mm per drawer
Door opening width per glazed door	450 mm
Central decorative panel dimensions	1200 x 600 mm
Adjustable shelf thickness	25 mm
Carcass panel thickness	18 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	30 kg
Recommended wall anti-tip fastener count	4
Hinge open angle	110 degrees
Drawer slide cycle rating	50000 cycles
Hinge cycle rating	80000 cycles
Net weight range	600 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass construction	E1 grade engineered wood core with red-brown wood veneer finish
Upper glazed doors	8 mm tempered beveled glass set in wood frames
Hardware	Brushed antique metal pull handles on all doors and drawers
Decorative trim	Solid wood moulding for cornice, pilasters and plinth base
Edge banding	2 mm thick matching wood veneer edge banding on all exposed panels
Back panel	9 mm thick engineered wood backing with wood veneer finish on visible central section

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Adjustable shelves	3 height-adjustable shelves per side upper glazed section, 50mm spacing increments
Drawer operation	3 central stacked drawers with full-extension ball bearing slides for office supply and file storage
Door operation	Hinged solid wood lower doors and framed glass upper doors, optional keyed locks for security
Decor display	Recessed central framed panel designed for hanging calligraphy or decorative artwork

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office background placement	Wall-mounted behind executive desk as formal document and decor storage
Boardroom ancillary storage	Used for document storage and display of corporate awards in formal meeting rooms

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and performance requirements for domestic and kitchen storage cabinets
EN 12521:2015	Furniture strength, durability and safety requirements for commercial seating and storage
EN 12150-1:2015	Thermally toughened soda lime silicate safety glass for glazed doors

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture performance standard for commercial office cabinets and bookcases
ANSI/BIFMA X5.1-2017	General office furniture safety requirements for structural stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for cabinet structural performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor office use
GB/T 4897.3-2003	Particleboard specification for furniture structural use, applicable for core panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for cabinet structural performance;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office use;
3. GB/T 4897.3-2003: Particleboard specification for furniture structural use, applicable for core panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXB-WALL-3SEC-3800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXB-WALL-3SEC-3800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXB-WALL-3SEC-3800Open Export Tool

Quick Actions

Post an RFQ

Product Description

The HAIBANG EXB-WALL-3SEC-3800 Red-brown Solid Wood Veneer Executive Office Bookcase Wall Unit delivers a traditional, formal presence tailored for high-end professional spaces, defined by a strictly symmetrical three-section layout. The unit’s visual design balances warm red-brown wood finishes with clear glazed upper storage and closed lower cabinetry, capped with a structured solid wood cornice, anchored by a matching plinth base, and accented by framed pilasters that create a polished, built-in aesthetic. All exposed panel edges are finished with matching wood veneer edge banding for a seamless, refined appearance, while brushed antique metal pull handles add subtle period-appropriate detail across all doors and drawers.
Built around an E1 grade engineered wood core finished with red-brown wood veneer, the unit features solid wood moulding for its decorative trim elements, 8 mm tempered beveled glass set in wood frames for upper doors, and a 9 mm thick engineered wood backing with a matching veneer finish on its visible central section. Each upper glazed side section includes three height-adjustable shelves, set at consistent spacing increments to accommodate items of varying sizes. The central recessed framed panel is purpose-built to hang calligraphy or decorative artwork, sitting above three stacked central drawers fitted with full-extension ball bearing slides for organized storage of office supplies and files. Lower hinged solid wood doors conceal additional closed storage, and all doors support optional keyed locks for secured access. Each shelf supports a 30 kg static distributed load, with hardware rated for long-term regular use, and the unit requires four wall anti-tip fasteners for stable installation.
This wall unit is ideally suited for wall-mounted placement behind an executive desk as formal storage for documents and decor, or for use in formal boardrooms to store meeting materials and display corporate awards. Procurement teams should note the unit ships across multiple cartons, requires on-site assembly, and should be paired with compatible locking hardware if secured storage is a project requirement. Teams should also confirm wall structural capacity to support the full installed unit weight prior to installation.

Red-brown Solid Wood Veneer Executive Office Bookcase Wall Unit
