Name: 5-Bay Reddish Brown Executive Office Bookcase Wall Unit
Brand: HAIBANG
SKU: V4SM7B

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 430 × 2200 mm
Overall unit dimensions	3200 x 430 x 2200 mm
Single standard bay width	640 mm
Central open display bay width	640 mm
Glass-front upper side bay internal shelf count	3 shelves per bay
Central open bay upper shelf count	3 tiers of open shelving
Central drawer bank drawer count	3 stacked drawers
Individual drawer front height	180 mm
Lower solid cabinet door height	740 mm
Upper display section height	1280 mm
Crown and base trim height	90 mm each
Shelf thickness	25 mm
Glass door panel thickness	5 mm
Door panel thickness	18 mm
Carcass back panel thickness	9 mm
Edge banding thickness	0.4 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	280 kg
Individual shelf static load capacity	30 kg
Hinge open angle for solid/glass doors	110 degrees
Drawer slide cycle rating	50000 cycles
Hinge cycle rating	80000 cycles
Anti-tip hardware quantity	4 brackets
Standard warranty period	10 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass and panels	18mm engineered wood substrate with 0.4mm reddish wood veneer lacquer finish
Frame, crown and base trim	Solid hardwood with matching stain and clear lacquer topcoat
Glass door panels	5mm clear tempered glass with framed wood edging
Door and drawer hardware	Zinc alloy bar pulls with brushed metallic finish, concealed cabinet hinges
Drawer slides	Cold-rolled steel full-extension ball-bearing slides
Shelf surfaces	25mm veneered engineered wood with matching edge banding

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Mixed layout: 3 central open display tiers, 2 glass-door upper display bays, 7 lower solid-door storage cabinets, 3 central drawers
Door operation	All solid and glass doors are side-hinged, swinging outward for full interior access
Drawer operation	Central drawers extend fully on ball-bearing slides for unobstructed access to stored contents
Adjustable shelving	Interior shelves in glass and solid door bays support 25mm height adjustment for variable storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Executive office backdrop wall behind managerial desk, for books and display decor
Target user	Corporate executive suites, boardrooms, and senior management office areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units and worktops, safety requirements applicable for tall storage units
EN 14073-2:2004	Office furniture storage furniture, safety requirements for office storage units
EN 12521:2015	Furniture strength, durability and safety requirements for domestic storage

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture standard for office use, applicable for load and durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural and finish quality
GB 18584-2001	Indoor decoration material limit of harmful substances in wooden furniture, applicable for formaldehyde emission
GB/T 4897.3-2003	Particleboard for furniture use, applicable if engineered wood substrate is particleboard

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality;
2. GB 18584-2001: Indoor decoration material limit of harmful substances in wooden furniture, applicable for formaldehyde emission;
3. GB/T 4897.3-2003: Particleboard for furniture use, applicable if engineered wood substrate is particleboard;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OF-BC-5BAY-REDWD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OF-BC-5BAY-REDWD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OF-BC-5BAY-REDWDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

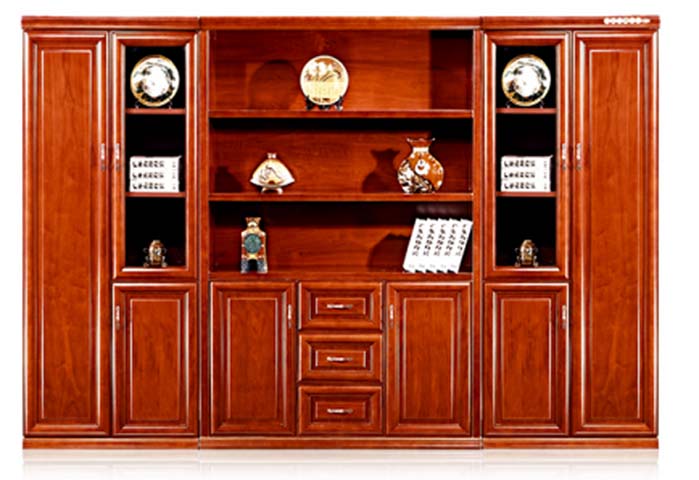

The HAIBANG 5-Bay Reddish Brown Executive Office Bookcase Wall Unit, model OF-BC-5BAY-REDWD, delivers a traditional, formal executive aesthetic designed to anchor premium professional workspaces. Its balanced mixed open and closed storage layout creates a polished, structured visual presence: a central open display bay flanked by symmetric side bays, topped with matching solid hardwood crown trim and finished with a coordinated base trim for a cohesive built-in look, suitable for both wall-mounted and freestanding installation. The unit spans 3200 mm wide, 430 mm deep, and 2200 mm tall, with uniformly sized 640 mm wide bays for visual consistency; three tiers of open shelving sit at the center above a bank of three stacked 180 mm tall drawers, while upper side bays feature framed glass doors, and all lower sections hold 740 mm tall solid cabinet doors for concealed storage. The bookcase is constructed for long-term heavy use: its carcass and panels use 18mm engineered wood substrate finished with a 0.4mm reddish wood veneer lacquer, while frame, crown, and base trim are crafted from solid hardwood with matching stain and a clear lacquer topcoat. Glass door panels are 5mm clear tempered glass with wood edging, paired with brushed metallic finish zinc alloy bar pulls and concealed hinges that open 110 degrees for full interior access, rated for 80000 open-close cycles. Drawers operate on cold-rolled steel full-extension ball-bearing slides rated for 50000 cycles, while 25mm veneered engineered wood shelves hold up to 30 kg static load each; interior shelves in enclosed bays support 25mm height adjustment to accommodate items of varying sizes, and four anti-tip brackets are included for secure installation. The unit net weight is 280 kg, backed by a 10-year standard warranty. Designed as a backdrop wall behind managerial desks to hold books and display decor, it is ideal for corporate executive suites, boardrooms, and senior management office areas. For procurement, note that one unit ships across multiple cartons, requires 40 minutes of assembly per set, and supports both wall-mounted and freestanding placement to fit varied office layout plans.
