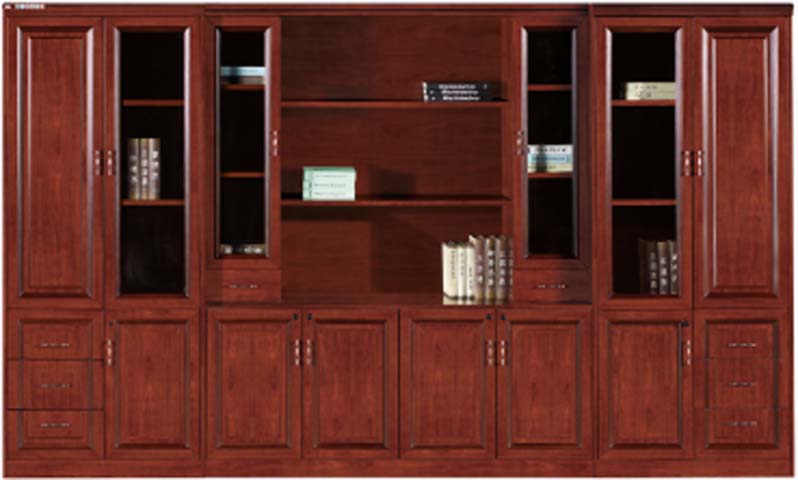

Traditional Mahogany Finish Executive Wall Bookcase with Glass Doors and Drawers (model EXB-MAH-3680-2490) is listed under Traditional Filing Cabinet, with overall dimensions of 3680 × 400 × 2490 mm and main material of MDF. Load capacity: 100 kg. Certifications: Traditional,executive,style,modular,wall,unit,mixed,open/enclosed,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall unit dimensions | 3680 x 400 x 2490 mm | |
|---|---|---|
| central open shelf section width | 1480 mm | |
| side storage section width per side | 1100 mm | |
| open shelf vertical clearance between tiers | 380 mm | |
| glass door internal shelf depth | 360 mm | |
| lower cabinet door height | 750 mm | |
| drawer internal height per tier | 170 mm | |
| carcass side panel thickness | 25 mm | |
| display shelf thickness | 20 mm | |
| back panel thickness | 9 mm | |
| tempered glass door thickness | 5 mm | |
| edge banding thickness | 1 mm | |
| metal pull handle length | 120 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| single display shelf static load capacity | 100 kg | |
|---|---|---|
| hinge open/close cycle rating | 80000 cycles | |
| drawer slide cycle rating | 50000 cycles | |
| surface abrasion resistance | 2000 cycles | |
| anti-tip connector quantity | 4 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| main carcass | Solid hardwood frame with mahogany wood veneer, polished gloss lacquer finish | |
|---|---|---|
| display door panels | 5mm tempered safety glass set in solid wood frames | |
| hardware pulls | Antique brass-finish metal bar handles on all doors and drawers | |
| drawer slides | Side-mounted ball-bearing steel slides for smooth operation | |
| door hinges | Soft-close steel concealed hinges for 110-degree opening | |
| back panel | 9mm slot-in medium density fiberboard with moisture-resistant coating |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| central open shelves | 3 fixed tiered display shelves for books and decorative items, no door obstruction | |
|---|---|---|
| upper glass door cabinets | 4 fixed interior shelves per glass door section for visible book and award storage | |
| lower solid door cabinets | 1 fixed interior shelf per lower cabinet for concealed document storage | |
| end drawer banks | 3 stacked drawers per outer end for small office supply and file storage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| executive office spaces | Pairs with matching mahogany executive desks for traditional premium office suites | |
|---|---|---|
| boardroom ancillary areas | Provides document and award storage adjacent to formal meeting spaces |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic and office storage units | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for office furniture storage |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits | |
| GB/T 4893.8-2013 | Surface wear resistance test for furniture coatings, applicable to finish durability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits; 3. GB/T 4893.8-2013: Surface wear resistance test for furniture coatings, applicable to finish durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
