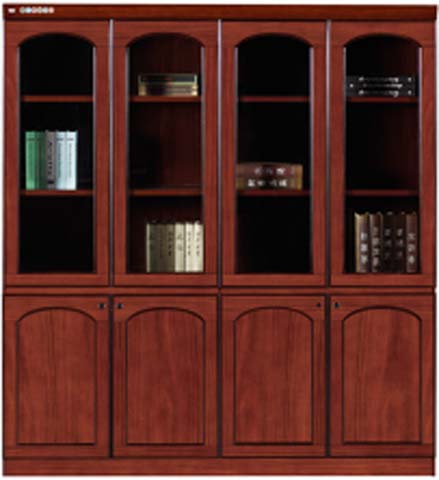

Traditional Mahogany Finish 8-Door Office Display Bookcase (model OBC-8DR-MAH-AR) is listed under Traditional Filing Cabinet, with overall dimensions of 1940 × 560 × 2300 mm and main material of MDF. Load capacity: 30 kg. Certifications: Traditional,executive,style,wall-anchored,storage,combination,glass/solid,door,construction. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1940 x 560 x 2300 mm | |
|---|---|---|
| Single upper door width | 460 mm | |
| Single lower door width | 460 mm | |
| Upper display section height | 1420 mm | |
| Lower concealed storage section height | 780 mm | |
| Shelf depth | 360 mm | |
| Upper shelf vertical spacing | 340 mm | |
| Glass thickness | 5 mm | |
| Carcass board thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Door frame width | 60 mm | |
| Plinth base height | 100 mm | |
| Edge band thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 80 kg | |
|---|---|---|
| Per shelf maximum static load | 30 kg | |
| Lower compartment per shelf load | 40 kg | |
| Total storage capacity (book volume) | 240 standard hardcover books | |
| Hinge cycle durability | 80000 open/close cycles | |
| Slide load rating (lower storage shelves) | 40 kg | |
| Anti-tip required anchor count | 2 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and frame | Solid hardwood with mahogany red-brown veneer finish | |
|---|---|---|
| Upper door panels | Clear tempered glass set in solid wood arched frames | |
| Lower door panels | Solid wood with arched raised panel detailing | |
| Internal shelves | 18mm thick engineered wood with matching veneer finish | |
| Hardware | Antiqued metal hinges and keyed locks | |
| Back panel | 5mm thick sealed fibreboard with matching finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper door function | Hinged glass doors with keyed lock for secured display of books and decor | |
|---|---|---|
| Lower door function | Hinged solid wood doors for concealed storage of archives and supplies | |
| Shelf adjustability | 12 adjustable shelves with 32mm pitch holes for custom spacing | |
| Door swing angle | 110 degrees |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping volume | 0.65 m³ | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office space | Placed behind or beside executive desks for book, document and award display | |
|---|---|---|
| Library and reference room | Used for organized archival storage of reference materials and book collections |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applies to safety and strength requirements for domestic and office storage cabinets | |
|---|---|---|
| EN 12521:2015 | Applies to furniture strength, durability and safety for storage units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applies to performance and safety requirements for office storage units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applies to wooden furniture general technical requirements for cabinet products | |
|---|---|---|
| GB/T 4897.3-2003 | Applies to particleboard used in furniture for structural and shelf components | |
| GB 18584-2001 | Applies to formaldehyde emission limits for wooden interior furniture materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applies to wooden furniture general technical requirements for cabinet products; 2. GB/T 4897.3-2003: Applies to particleboard used in furniture for structural and shelf components; 3. GB 18584-2001: Applies to formaldehyde emission limits for wooden interior furniture materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
