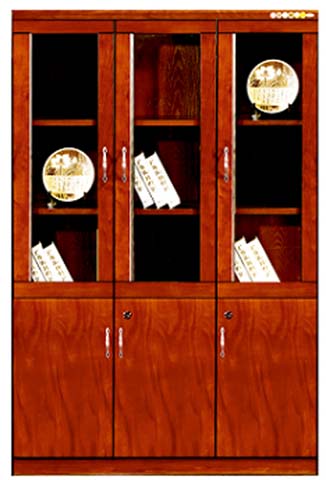

Product supplier3-Column Red Walnut Office Bookcase with Upper Glass Doors and Lower Lockable Storage, E1 grade wood composite panel with walnut veneer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 550 × 2000 mm | |
|---|---|---|
| Single column width | 800 mm | |
| Upper glazed section height | 1200 mm | |
| Lower solid door section height | 800 mm | |
| Adjustable shelf count (upper section) | 9 shelves | |
| Shelf spacing (upper section) | 330 mm | |
| Carcass panel thickness | 18 mm | |
| Top panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Glass door panel thickness | 5 mm | |
| Handle length | 120 mm | |
| Door hinge opening angle | 110 degrees | |
| Lower compartment internal height | 720 mm | |
| Edge band thickness | 2 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 118 kg | |
|---|---|---|
| Single shelf static load capacity | 30 kg | |
| Lower cabinet compartment static load | 50 kg per column | |
| Standard finish color options | 5 options | |
| Commercial warranty period | 5 years | |
| Hinge cycle durability | 80000 cycles | |
| Drawer slide load rating (if fitted) | 35 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass | E1 grade wood composite panel with walnut veneer | |
|---|---|---|
| Upper door panels | 5mm tempered clear glass with wood frame | |
| Lower door panels | 18mm matching wood composite panel with veneer | |
| Hardware (handles/locks) | Brushed zinc alloy pulls, keyed cam locks | |
| Shelves | 18mm matching wood composite panel with edge banding | |
| Surface finish | Scratch-resistant polyurethane lacquer coating |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Hinged swing doors for upper and lower sections | |
|---|---|---|
| Lower storage security | Keyed cam locks on lower doors, two keys per unit | |
| Shelf adjustability | Height-adjustable shelves with metal support pins | |
| Anti-tip safety | 2 wall anchor brackets included |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Suits behind executive desks for book and credential display | |
|---|---|---|
| Open office storage zone | Provides mixed open display and locked file storage for team use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and structural requirements for domestic and office storage furniture | |
|---|---|---|
| EN 12521:2015 | Strength, durability and stability requirements for non-domestic storage furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for commercial office applications |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade minimum requirement | |
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, acceptance threshold 350 rpm |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet structural performance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade minimum requirement; 3. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, acceptance threshold 350 rpm; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
