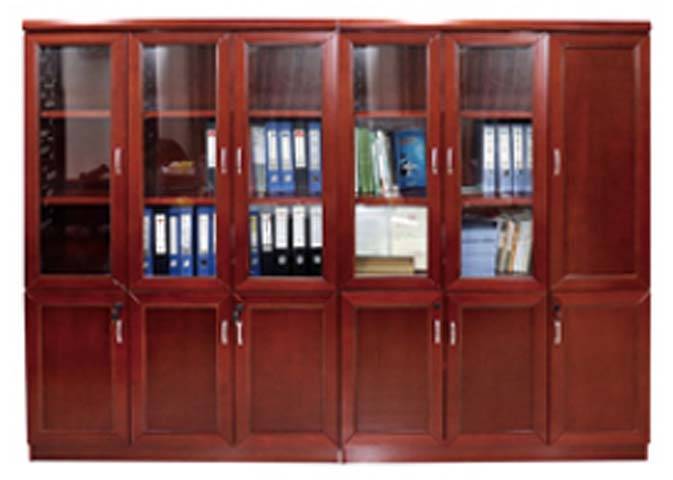

Traditional Mahogany 6-Door Office Bookcase with Upper Glass Doors and Lower Lockable Solid Doors (model OBC-6D-MAH-2400) is listed under Traditional Filing Cabinet, with overall dimensions of 2400 × 400 × 2000 mm and main material of MDF. Load capacity: 45 kg. Certifications: Traditional,mahogany,styling,modular,6-door,design,lockable,lower,storage,adjustable,internal,shelves. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| Upper display section height | 1100 mm | |
| Lower concealed storage section height | 900 mm | |
| Individual door width | 400 mm | |
| Adjustable shelf vertical clearance | 350 mm | |
| Carcass panel thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Door panel thickness | 20 mm | |
| Tempered glass panel thickness | 5 mm | |
| Shelf thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Handle length | 90 mm | |
| Base plinth height | 60 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-shelf static load capacity | 45 kg | |
|---|---|---|
| Hinge open/close cycle life | 120000 cycles | |
| Net assembled weight | 120 kg | |
| Recommended wall anti-tip restraint load | 100 kg | |
| Lockable compartment count | 6 | |
| Standard commercial limited warranty | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Substrate material | E1 grade MDF, density 0.75 g/cm³ | |
|---|---|---|
| Surface veneer | 0.6 mm mahogany/red walnut wood veneer | |
| Surface finish | Scratch-resistant polyurethane wood paint | |
| Upper door panels | Clear tempered safety glass | |
| Hardware components | Zinc alloy lever handles, steel cam locks, damping steel hinges | |
| Shelf support hardware | Steel shelf pins with multi-position adjustment holes |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Upper 5 glass-door display compartments + 6 lower lockable solid-door compartments | |
|---|---|---|
| Shelf adjustability | Multi-position adjustable shelves on support pins | |
| Door operation | Hinged doors open 110 degrees with soft-close damping | |
| Security function | Keyed cam locks on all lower doors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Applicable space | Executive offices, meeting rooms, and administrative document storage areas | |
|---|---|---|
| Suitable storage use | Upright ring binders, archived documents, reference books, and office supplies |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture, safety and structural strength requirements for tall cabinets | |
|---|---|---|
| EN 12727:2000 | Requirements for storage furniture durability and static load performance | |
| EN 717-1:2004 | Formaldehyde emission testing for wood-based panel furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Standard for office storage cabinets, structural and durability performance benchmarks | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and corporate responsibility |
Standards applicable to China-market projects
| GB/T 39600-2021 | Formaldehyde emission limits for wood-based panels, E1 grade applicable for indoor office use | |
|---|---|---|
| GB 18581-2020 | Limit of harmful substances in solvent-based wood coatings for furniture finishes | |
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet structural performance | |
| GB/T 4897.3-2015 | Requirements for MDF substrate used in dry-condition office furniture |
This product must meet the following technical requirements: 1. GB/T 39600-2021: Formaldehyde emission limits for wood-based panels, E1 grade applicable for indoor office use; 2. GB 18581-2020: Limit of harmful substances in solvent-based wood coatings for furniture finishes; 3. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet structural performance; 4. GB/T 4897.3-2015: Requirements for MDF substrate used in dry-condition office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
