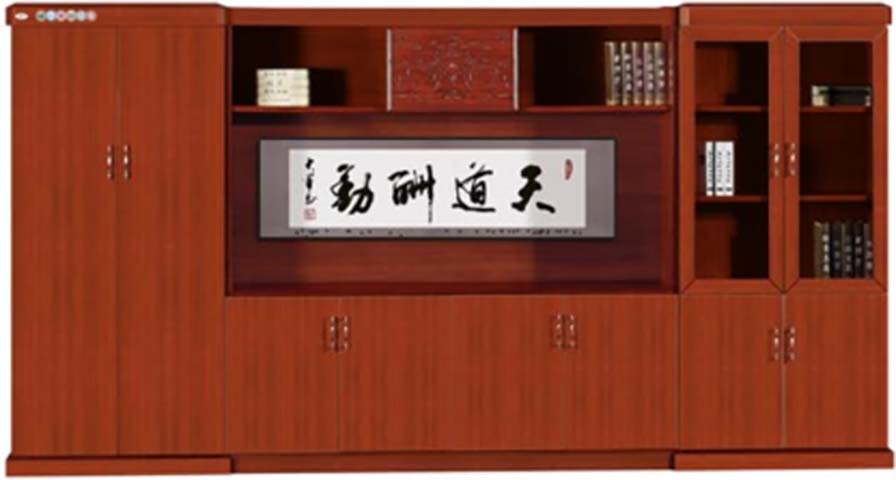

Solid Wood Veneer Executive Office File Bookcase with Display Section (model EXC-BK-3600-RW) is listed under Traditional Filing Cabinet, with overall dimensions of 3600 × 420 × 2200 mm and main material of MDF. Load capacity: 30 kg. Certifications: Traditional,executive,style,combined,modular,storage,solid,wood,grain,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 3600 x 420 x 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single shelf static load capacity | 30 kg | |
|---|---|---|
| Unit net weight | 280 kg | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Anti-tip load rating | 150 kg horizontal force resistance | |
| Total storage volume | 2.9 cubic meters | |
| Maximum document storage capacity | 600 standard A4 folders | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass | E1 grade medium density fiberboard | |
|---|---|---|
| Exterior finish | 0.6mm red walnut wood veneer with matte polyurethane coating | |
| Right section door panels | 5mm thick clear tempered glass with wood frame | |
| Door handles | Polished zinc alloy dual-pull handles | |
| Internal shelves | 18mm thick melamine-faced particleboard | |
| Base plinth | Solid wood composite with matching veneer finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Combination of closed door storage, open display shelving and glass display compartments | |
|---|---|---|
| Door operation | Side-hinged double doors with dual pull handles for all closed compartments | |
| Display function | Recessed central section for decorative artwork or honor plaques | |
| Modular assembly | Three-section bolt-connected structure for on-site assembly |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office space | Placed behind executive desk to store files, display awards and decorative art for formal office environments | |
|---|---|---|
| Conference room auxiliary storage | Used as rear storage for meeting materials, reference books and corporate branding displays |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 312:2010 | Particleboard performance requirements for furniture structural components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for load and durability testing | |
|---|---|---|
| ANSI/BIFMA M7.1-2020 | Standard test method for formaldehyde and VOC emissions from office furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel strength and dimensional tolerance checks | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable for E1 grade material verification | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture use, applicable for internal shelf material checks |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel strength and dimensional tolerance checks; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E1 grade material verification; 3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable for internal shelf material checks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
