Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

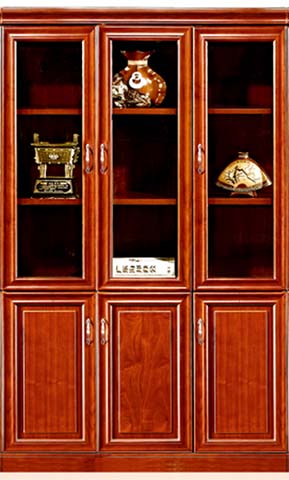

| Overall dimensions | 1350 x 400 x 2000 mm | |
|---|---|---|
| Upper display section height | 1150 mm | |
| Lower storage section height | 850 mm | |
| Plinth base height | 80 mm | |
| Single door width (each column) | 430 mm | |
| Door frame moulding width | 30 mm | |
| Upper glass door glass thickness | 5 mm | |
| Upper shelf count per column | 3 units | |
| Shelf spacing (upper section) | 330 mm | |
| Lower cabinet internal shelf count per column | 1 unit | |
| Lower internal storage clearance per zone | 360 mm | |
| Vertical pull handle length | 120 mm | |
| Carcass panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Gross product weight | 95 kg | |
|---|---|---|
| Single shelf static load capacity | 30 kg | |
| Hinge cycle rating | 80000 open/close cycles | |
| Anti-tip connector quantity | 2 units | |
| Edge banding thickness | 1 mm | |
| Standard warranty | 3 years | |
| Available finish options | 4 units | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and door panels | 18mm E0-grade engineered wood with red-brown wood grain veneer | |
|---|---|---|
| Upper door panels | 5mm clear tempered glass set in wood frames | |
| Door hardware | Zinc alloy vertical bar pulls with brushed antique brass finish | |
| Shelf panels | 18mm matching wood-grain engineered wood, adjustable on metal shelf pins | |
| Hinges | Cold-rolled steel concealed soft-close hinges | |
| Base plinth | Matching wood grain composite wood, finished to match door and carcass |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | 6 swing doors (3 upper, 3 lower) with 110-degree opening angle, fitted with soft-close hinges | |
|---|---|---|
| Shelf adjustability | Upper display shelves support 5-level height adjustment in 32mm increments | |
| Storage zoning | Upper glass-fronted open display zone for decorative items and reference books, lower solid-door concealed zone for archival storage | |
| Installation configuration | Freestanding unit with optional wall anchor anti-tip attachment, delivered flat-packed for on-site assembly |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Placed behind executive desks to display awards, decor, and store reference materials | |
|---|---|---|
| Conference room storage | Used to store meeting materials, presentation supplies, and corporate display items |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 312:2010 | Performance specifications for particleboard used in furniture construction | |
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office environments, covering load and stability |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural integrity and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required for indoor office air quality compliance | |
| GB/T 4897.3-2015 | Performance requirements for particleboard used in furniture structural components | |
| GB 28007-2011 | Safety requirements for children's and adult storage furniture, covering anti-tip provisions |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural integrity and finish quality; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for indoor office air quality compliance; 3. GB/T 4897.3-2015: Performance requirements for particleboard used in furniture structural components; 4. GB 28007-2011: Safety requirements for children's and adult storage furniture, covering anti-tip provisions; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
