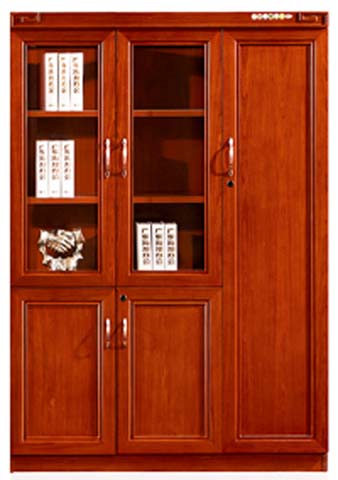

Name: 3-Door Reddish Brown Wooden Office File Bookcase with Glass Upper Doors and Locks
Brand: HAIBANG
SKU: Z37TY7

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1350 × 440 × 2200 mm
Overall assembled dimensions	1350 x 440 x 2200 mm
Shelf usable depth	380 mm
Glass door section height	1320 mm
Lower solid door compartment height	660 mm
Right full-height solid door compartment width	450 mm
Left/middle glass door panel width	450 mm per door
Adjustable shelf spacing range	320 mm
Side panel thickness	25 mm
Tempered glass panel thickness	4 mm
Plinth base height	80 mm
Hinge door opening angle	110 degrees
Edge band thickness	1 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	30 kg
Recommended maximum document storage capacity	180 standard A4 ring binders
Door hinge cycle rating	80000 open/close cycles
Net product weight	95 kg
Warranty period	5 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass	E1 grade wood particleboard/MDF core with walnut wood veneer
Exterior finish	Low-odor reddish walnut matte polyurethane lacquer
Upper door panels	4mm clear tempered glass with solid wood framing
Lower and right door panels	25mm solid wood raised panel with framed edge detail
Hardware pulls and locks	Brushed zinc alloy bar pulls with brass key cylinders on locked doors
Hinges	Concealed cold-rolled steel damped soft-close hinges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage zoning	Two upper glazed display zones, two lower closed zones, one full-height locked zone
Shelf adjustability	5mm pitch adjustable shelf supports for custom shelf height spacing
Locking security	Keyed locks on middle lower door and right full-height door for confidential file storage
Door operation	Outward-swinging hinged doors with soft-close damping to reduce impact noise

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office file storage	Suitable for manager/CEO offices to store confidential documents, reference books and decorative display items
Administrative/finance department storage	Suitable for storing archived files, financial records and office supplies with lockable security

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office furniture - Storage furniture - Part 2: Safety requirements, applicable for structural safety verification
EN 14073-3:2004	Office furniture - Storage furniture - Part 3: Test methods for stability and structure strength, applicable for load testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimension and structural stabilityAcceptance
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, applicable for formaldehyde emission check

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimension and structural stabilityAcceptance;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, applicable for formaldehyde emission check;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WFC-3DR-GL-13544220

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WFC-3DR-GL-13544220

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WFC-3DR-GL-13544220Open Export Tool

Quick Actions

Post an RFQ

Product Description

The HAIBANG WFC-3DR-GL-1354422 is a freestanding traditional-style wooden office bookcase and file storage cabinet, finished in a rich reddish walnut matte low-odor polyurethane lacquer. Its vertically oriented form organizes storage into distinct zones: two adjacent upper sections framed by solid wood and fitted with clear tempered glass doors for display, two matching lower compartments with solid raised-panel wood doors, and a separate full-height solid-door compartment running the full length of the cabinet’s right edge. Uniform panel widths across the glazed doors and the full-height right compartment create a balanced, symmetrical visual profile suited to formal professional interiors. The cabinet carcass is built with an E1 grade wood particleboard and MDF core, finished with walnut veneer, and 25mm thick side panels for structural stability. Upper door panels use 4mm clear tempered glass set in solid wood frames, while lower and right-side doors use 25mm solid wood raised panels with framed edge detailing. Hardware includes brushed zinc alloy bar pulls, brass key cylinders on locking doors, and concealed cold-rolled steel damped soft-close hinges that reduce impact noise during operation. All shelves rest on 5mm pitch adjustable supports, allowing users to customize interior spacing to suit different storage items. Shelves support a 30kg static distributed load each, and the unit holds a maximum of 180 standard A4 ring binders. Keyed locks are fitted to the middle lower door and the full-height right compartment to secure confidential materials, while outward-swinging hinged doors provide easy access to all interior zones. This storage unit is well suited for executive offices, where it can hold confidential documents, reference books, and decorative display pieces in the glazed upper sections. It also fits administrative and finance department workspaces, supporting secure storage of archived files, financial records, and general office supplies. Procurement teams should note the unit ships across multiple cartons, requires 40 minutes of assembly time per set, and is covered by a 5-year warranty. The soft-close hinge mechanism is rated for extended repeated use, and lockable compartments support compliance needs for sensitive document storage in professional settings.

3-Door Reddish Brown Wooden Office File Bookcase with Glass Upper Doors and Locks
