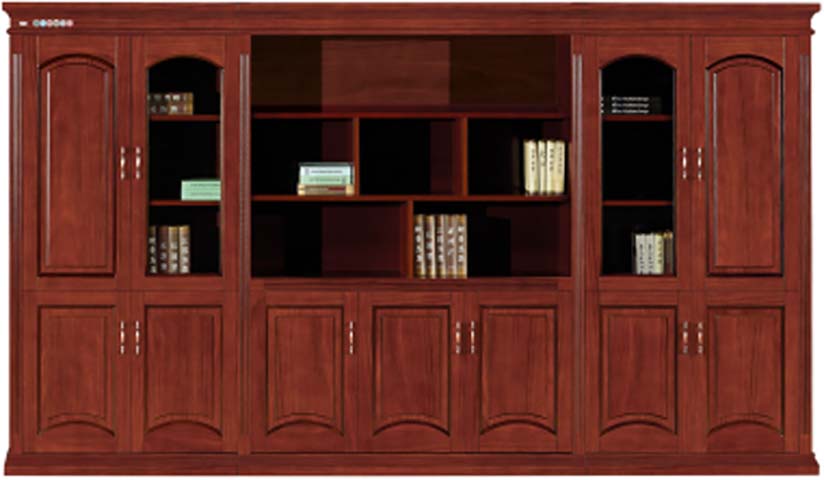

Traditional Mahogany-Toned 5-Section Executive Office Wall Bookcase with Open and Closed Storage (model EXB-5SEC-MAH-2490) is listed under Traditional Filing Cabinet, with overall dimensions of 2794 × 559 × 2489 mm and main material of MDF. Load capacity: 68 kg. Certifications: Traditional,executive,styling,mixed,open/closed,storage,wall-mounted,ready,arched,raised-panel,doors. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 2794 x 559 x 2489 mm | |
|---|---|---|
| Lower cabinet door height | 991 mm | |
| Open central shelving bay width | 1118 mm | |
| Side enclosed bay width per side | 838 mm | |
| Individual shelf depth | 406 mm | |
| Raised plinth base height | 102 mm | |
| Crown molding projection height | 102 mm | |
| Clear shelf vertical spacing | 330 mm | |
| Arched upper open bay height | 889 mm | |
| Door panel thickness | 25 mm | |
| Carcass side panel thickness | 18 mm | |
| Back panel thickness | 18 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-shelf static load capacity | 68 kg | |
|---|---|---|
| Hinge open angle per door | 110 degrees | |
| Hinge cycle durability | 80000 open/close cycles | |
| Surface scratch resistance | 400 cycles | |
| Recommended maximum wall anchorage load | 454 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass construction | 18mm engineered wood substrate with mahogany wood veneer finish | |
|---|---|---|
| Door panels | 25mm raised arched/flat panels with solid wood edge banding | |
| Hardware pulls | Zinc alloy with polished antique silver finish | |
| Shelves | 25mm thick veneered engineered wood, 1mm PVC edge banding | |
| Back panel | 18mm veneered engineered wood, secured with dowel and screw joinery | |
| Decorative trim | Solid wood crown molding and plinth base, stained to match unit finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 12 solid-door lower compartments, 4 arched upper side compartments, 6 central open display shelves | |
|---|---|---|
| Shelf adjustability | 32mm increment adjustable shelf positions with metal shelf pins | |
| Door operation | Hinged swing doors with magnetic catch retention, dual pulls per door pair | |
| Anti-tip safety | 2 included wall anchoring brackets for secure attachment to wall studs |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Wall-spanning storage for books, documents and display items behind executive desks | |
|---|---|---|
| Law firm partner office | Formal traditional styling matches professional high-end office environments |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements | |
|---|---|---|
| EN 312:2010 | Particleboards - specifications, applicable to engineered wood substrate verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage Furniture - Tests for safety, durability and structural performance |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural verification | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to substrate performance verification | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural verification; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to substrate performance verification; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
