Name: Glossy Red Mahogany L-Shaped Executive Desk with Mobile Side Pedestal
Brand: HAIBANG
SKU: 6KK94Y

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 760 mm
Overall desk dimensions	2800 x 1200 x 760 mm
Main work surface dimensions	2000 x 1000 x 760 mm
Side return dimensions	1200 x 550 x 660 mm
Mobile file pedestal dimensions	420 x 490 x 660 mm
Seated knee clearance height	580 mm
Seated knee clearance width	520 mm
Desktop panel thickness	90 mm
Structural side/modesty panel thickness	18 mm
Solid wood edge banding thickness	8 mm
Cable grommet diameter	60 mm
Desktop underframe clearance height	100 mm
Drawer interior usable depth	450 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	120 kg
Product net weight	185 kg
Surface scratch resistance rating	2H
Drawer slide durability cycles	50000
Hinge durability cycles	80000
Metal hardware salt spray resistance	48 h
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and panel substrate	E0 grade high density fiberboard
Surface finish layer	0.8 mm natural wood veneer with glossy red mahogany paint
Edge protection	8 mm solid hardwood edge banding
Structural hardware	Cold-rolled steel drawer slides, locks and connectors
Mobile pedestal casters	50 mm diameter nylon swivel casters with brake
Underside cable tray	1.2 mm thick powder-coated steel wire tray

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Dual desktop cable grommets with under-desk steel tray
Mobile pedestal storage	3-drawer unit with central interlock, wheeled for repositioning
Full front modesty panel	Solid wood-veneer panel covering knee opening
Freestanding installation	Knock-down assembly with adjustable floor glides

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packaged gross weight	210 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private offices	Sized for senior leadership workspaces, paired with high-back executive chairs
Corporate boardrooms	Formal red wood finish for premium meeting spaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture strength and stability	EN 527:2011
Surface durability requirements	EN 12720:2013
Formaldehyde emission class	EN 13986:2004 E1

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk strength and durability	ANSI/BIFMA X2021
Mobile pedestal stability	ANSI/BIFMA X2021
Caster durability rating	ANSI/BIFMA X2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission limit	GB/T 39600E0 ≤0.025 mg/m³
Desk structural stability	GB/T 3324
Hardware corrosion resistance	GB/T 2007

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission limit: GB/T 39600E0 ≤0.025 mg/m³;
2. Desk structural stability: GB/T 3324;
3. Hardware corrosion resistance: GB/T 2007;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-L-RED-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-L-RED-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-L-RED-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

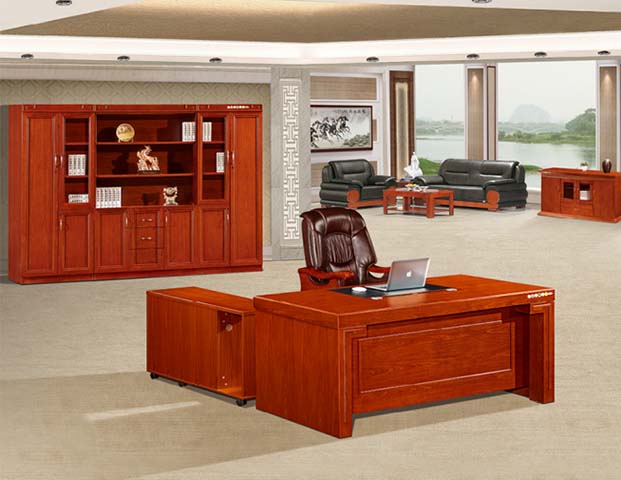

The HAIBANG EXD-L-RED-2800 L-shaped executive desk anchors premium professional workspaces with a traditional Chinese design language defined by a rich, glossy red mahogany finish. Its L-shaped configuration combines a generous main work surface and integrated side return to create a balanced, authoritative layout, finished with a full modesty panel that conceals the seated knee opening for a polished, formal appearance from all approach angles. Crafted for long-term commercial use, the desk uses E0 grade high-density fiberboard as its core substrate, topped with a 0.8 mm natural wood veneer coated in high-gloss red mahogany paint, and edged with 8 mm solid hardwood banding to resist impact at high-wear contact points. The 90 mm thick desktop delivers robust support, paired with 18 mm thick structural side and modesty panels for stable framing. Cold-rolled steel hardware forms the structure’s connectors, locks, and drawer slides, while the included mobile pedestal rides on 50 mm diameter nylon swivel casters with integrated brakes for secure positioning. A 1.2 mm thick powder-coated steel wire tray sits beneath the work surface, paired with dual desktop cable grommets for tidy cable routing. The desktop holds a 120 kg static load, with a 150 kg uniformly distributed load reference, and features a 2H scratch-resistant surface; drawer slides are rated for 50000 operation cycles, hinges for 80000 cycles, and metal hardware withstands 48 hours of salt spray exposure. The freestanding, knock-down design includes adjustable floor glides for stability on uneven floors, and the three-drawer mobile pedestal includes a central interlock for secure document storage. This desk is purpose-built for executive private offices, sized appropriately for senior leadership workspaces when paired with high-back executive chairs, and also suits corporate boardrooms where its formal red wood finish elevates premium meeting environments. Procurement teams should note the product ships as one set across multiple cartons, with a total packaged gross weight of 210 kg and total packaging volume of 1 m³ per set; assembly requires an 40 minutes per unit, and the mobile pedestal and side return are packed separately from the main desk top for streamlined transport and staging.

Glossy Red Mahogany L-Shaped Executive Desk with Mobile Side Pedestal
