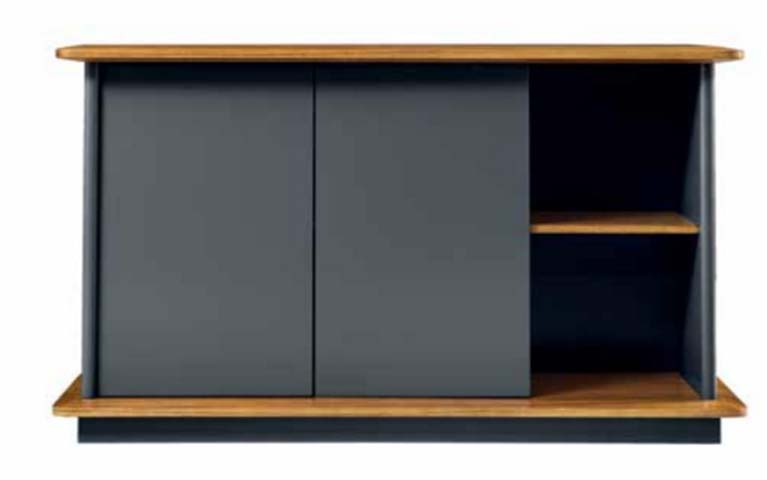

Two-Tone Oak and Charcoal Sliding Door TV Media Console (model TVC-STND-1800-OAK-CHAR) is listed under Traditional Office Sideboard, with overall dimensions of 1800 × 400 × 500 mm and main material of MDF. Load capacity: 50 kg. Certifications: Modern,two-tone,style,low-profile,plinth,base,sliding,door,storage,open,media,shelving. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1800 x 400 x 500 mm | |
|---|---|---|
| Top surface thickness | 25 mm | |
| Plinth base height | 50 mm | |
| Sliding door compartment width | 1200 mm | |
| Open shelving bay width | 500 mm | |
| Adjustable open shelf height (upper bay) | 190 mm | |
| Adjustable open shelf height (lower bay) | 210 mm | |
| Carcass side panel thickness | 18 mm | |
| Adjustable shelf thickness | 18 mm | |
| Rear cable management cutout diameter | 60 mm | |
| Open shelf depth | 360 mm | |
| Sliding door track recess depth | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface static load capacity | 50 kg | |
|---|---|---|
| Product net weight | 43 kg | |
| Sliding door cycle rating | 10000 open/close cycles | |
| Maximum supported TV screen size | 70 in | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top and trim surfaces | Oak veneer over MDF core with rounded bullnose edges | |
|---|---|---|
| Sliding door panels | Matte charcoal laminated MDF | |
| Carcass internal panels | Dark grey melamine faced particleboard | |
| Plinth base | Matte charcoal coated engineered wood | |
| Sliding door hardware | Polymer track system with metal guide rollers | |
| Adjustable shelf supports | Nickel-plated metal shelf pins |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Sliding door operation | Two track-mounted panels slide horizontally to access enclosed storage | |
|---|---|---|
| Adjustable shelving | One middle open shelf adjusts at 32mm increments to fit varying AV device heights | |
| Cable management | Rear panel cutouts route power and AV cords between storage and open bays | |
| Anti-tip safety | Included wall anchor bracket secures unit to wall to prevent forward tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room media placement | Suits 70inch televisions with open bays for AV receivers and soundbars | |
|---|---|---|
| Small space apartment storage | Low profile depth fits narrow living room walls without protruding into walkways |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable for stability testing | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for domestic seating-adjacent storage furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerances | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, required for formaldehyde emission |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel quality and dimensional tolerances; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, required for formaldehyde emission; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
