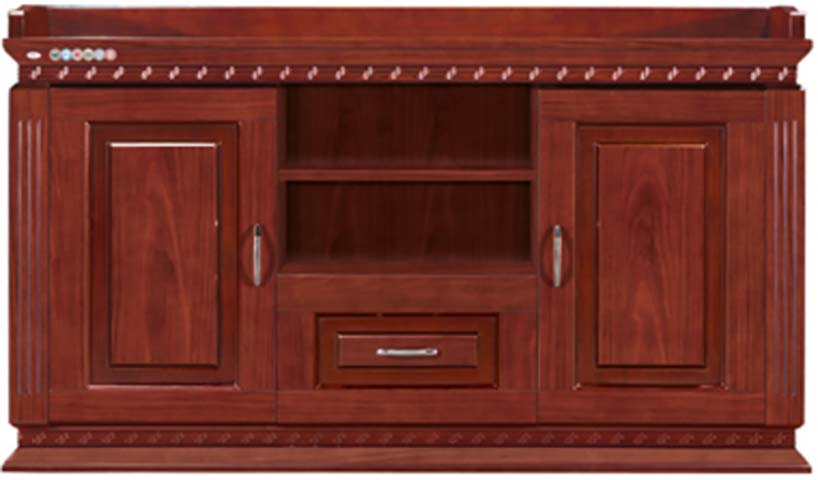

Mahogany Finish Executive Office Side Credenza with Open Shelves and Drawer (model OFC-CRD-1830MH) is listed under Traditional Office Sideboard, with overall dimensions of 1830 × 610 × 770 mm and main material of MDF. Load capacity: 50 kg. Certifications: Traditional,executive,style,closed,door,storage,open,shelf,drawer. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1830 x 610 x 770 mm | |
|---|---|---|
| Top panel thickness | 29 mm | |
| Side panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Left cabinet door dimensions | 520 x 600 mm | |
| Right cabinet door dimensions | 520 x 600 mm | |
| Center open compartment width | 580 mm | |
| Upper open shelf internal height | 200 mm | |
| Lower open shelf internal height | 210 mm | |
| Center drawer dimensions | 480 x 120 x 450 mm | |
| Raised top lip height | 30 mm | |
| Plinth base height | 60 mm | |
| Reeded side panel trim width | 60 mm | |
| Adjustable shelf pin spacing | 32 mm | |
| Door clearance swing radius | 500 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface static load capacity | 50 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Net weight reference | 75 kg | |
| Anti-tip securement rating | 22 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass construction | 18mm E1 grade engineered wood core | |
|---|---|---|
| Exterior finish | Mahogany wood veneer with satin lacquer topcoat | |
| Hardware pulls | Chrome-plated zinc alloy bar handles | |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| Door hinges | Cold-rolled steel concealed 110-degree opening hinges | |
| Edge banding | 0.8mm thick matching mahogany PVC edge banding |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Two closed side cabinets, two-tier central open shelf, single center lower drawer | |
|---|---|---|
| Door operation | Hinged side doors open 110 degrees for full interior access | |
| Drawer operation | Full-extension drawer slides allow complete access to drawer contents | |
| Leveling adjustment | Four adjustable floor glides compensate for uneven office flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary placement | Positioned against office walls adjacent to executive desks | |
|---|---|---|
| Storage use case | Stores office documents, supplies, and small equipment with mixed open/closed access |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for structural safety checks | |
|---|---|---|
| EN 14073-3:2004 | Office storage furniture stability and strength requirements, applicable for load testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Office storage units performance standard, applicable for commercial durability verification |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for quality acceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable for E1 grade compliance | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core material performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for quality acceptance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E1 grade compliance; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core material performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
