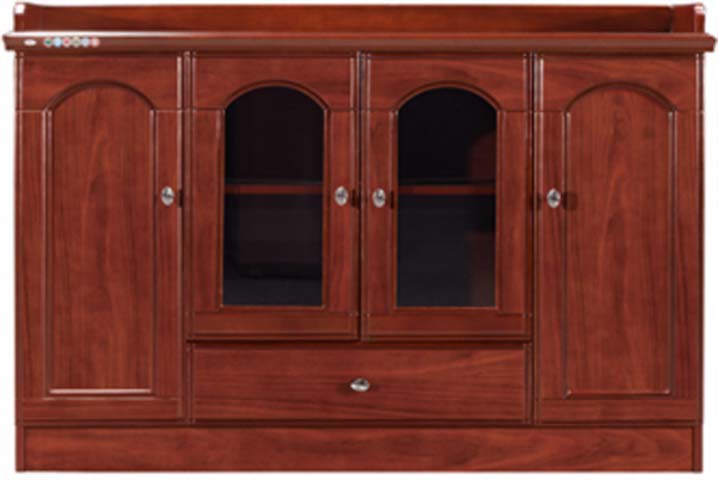

Traditional Mahogany-Finish Low Office Storage Cabinet with Arched Glass Doors (model OFSC-LO-018-4D1D) is listed under Traditional Office Sideboard, with overall dimensions of 1800 × 450 × 900 mm and main material of MDF. Load capacity: 25 kg. Certifications: traditional,executive,style,enclosed,storage,wood,veneer,finish,plinth,base,backsplash,rail. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1800 x 450 x 900 mm | |
|---|---|---|
| Backsplash rail height | 60 mm | |
| Plinth base height | 80 mm | |
| Central glazed door width (single) | 420 mm | |
| Outer solid door width (single) | 420 mm | |
| Lower drawer height | 160 mm | |
| Lower drawer width | 840 mm | |
| Internal shelf depth behind glass doors | 400 mm | |
| Adjustable shelf thickness | 25 mm | |
| Shelf adjustment pitch | 32 mm | |
| Door panel thickness | 18 mm | |
| Side panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Knob diameter | 30 mm | |
| Glass panel thickness (glazed doors) | 5 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Gross weight range | 80 kg | |
|---|---|---|
| Adjustable shelf static load capacity | 25 kg | |
| Hinge opening angle | 110 degrees | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Paint surface hardness | 2H | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Face veneer | 0.6mm mahogany-toned wood veneer, multi-coat polished paint finish | |
|---|---|---|
| Structural substrate | E1-grade medium-density fiberboard with solid wood edge framing | |
| Glazed door panels | Clear tempered glass with arched top edge, set in wood frames | |
| Hardware | Brushed nickel-finish zinc alloy round knobs for doors and drawer | |
| Drawer slides | Cold-rolled steel side-mount drawer slides with smooth extension | |
| Door hinges | Cold-rolled steel concealed hinges with adjustable tension |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | Two outer solid-door compartments, one central double glass-door compartment, one lower full-width drawer | |
|---|---|---|
| Shelf adjustability | Two adjustable shelves behind central glass doors with 32mm pitch adjustment | |
| Door operation | Hinged doors open 110 degrees outward for full interior access | |
| Surface protection | Curved raised backsplash rail prevents items from sliding off the rear top edge |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office side storage | Positioned adjacent to executive desks for document, supply and tea set storage | |
|---|---|---|
| Meeting room tea station | Used for beverage service supplies and meeting material storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, structural stability reference | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture, commercial office use reference |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office use, load and durability acceptance reference |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural acceptance | |
|---|---|---|
| GB 18584-2001 | Formaldehyde emission limit for interior decoration wooden furniture, mandatory substrate requirement | |
| GB/T 4893.4-2013 | Surface film adhesion test for furniture paint finishes, finish durability acceptance reference |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural acceptance; 2. GB 18584-2001: Formaldehyde emission limit for interior decoration wooden furniture, mandatory substrate requirement; 3. GB/T 4893.4-2013: Surface film adhesion test for furniture paint finishes, finish durability acceptance reference; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
