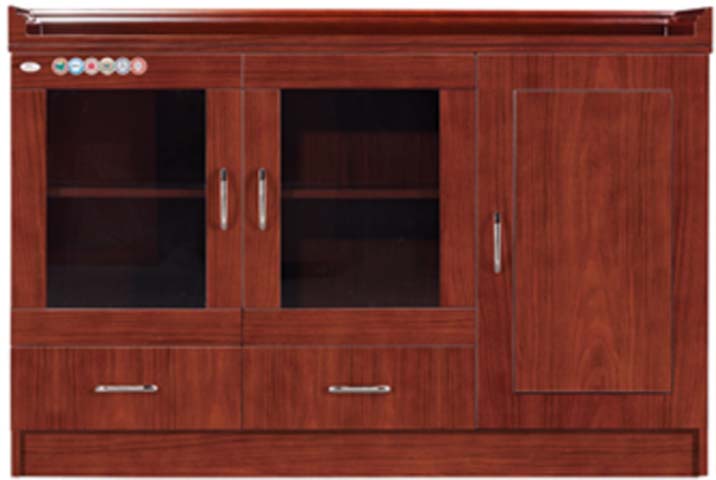

Red Wood Grain Office Low Storage Credenza with Glass Doors, Solid Door and Drawers (model OFC-CRD-1200-MHG) is listed under Traditional Office Sideboard, with overall dimensions of 1200 × 400 × 800 mm and main material of MDF. Load capacity: 30 kg. Certifications: traditional,style,enclosed,low,storage,wood,grain,finish,plinth,base. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 1200 x 400 x 800 mm | |
|---|---|---|
| top rear lip height | 50 mm | |
| upper glass door opening height | 420 mm | |
| solid door compartment width | 400 mm | |
| individual glass door width | 400 mm | |
| lower drawer internal height | 180 mm | |
| adjustable shelf thickness | 16 mm | |
| main carcass panel thickness | 16 mm | |
| door panel thickness | 18 mm | |
| back panel thickness | 5 mm | |
| plinth base height | 60 mm | |
| interior shelf clearance (glass section) | 320 mm | |
| metal pull handle length | 120 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| adjustable shelf static load | 30 kg | |
|---|---|---|
| individual drawer static load | 25 kg | |
| top surface static load | 50 kg | |
| total cabinet static load | 150 kg | |
| veneer surface abrasion resistance | 2000 cycles | |
| drawer slide cycle rating | 50000 cycles | |
| door hinge cycle rating | 80000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| carcass substrate | E1 grade MDF panel | |
|---|---|---|
| surface finish | 0.6mm mahogany wood veneer with polyurethane paint | |
| upper door panels | 5mm tinted semi-transparent tempered glass | |
| hardware pulls | Polished chrome-plated zinc alloy bar handles | |
| base construction | Recessed engineered wood plinth base | |
| edge banding | 1mm thick matching wood grain PVC edge banding |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| storage layout | Two glazed upper compartments, one full-height solid compartment, two lower drawers | |
|---|---|---|
| shelf adjustability | Two position adjustable shelves in glass door bays | |
| door operation | Hinged swing doors opening 110 degrees for full interior access | |
| drawer operation | Side-mounted full extension slides for complete drawer access |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| office meeting room use | Suitable for storing tea supplies, documents and meeting materials alongside conference tables | |
|---|---|---|
| executive office side storage | Positioned against walls adjacent to desks for concealed supply and file storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety requirements for domestic and office storage furniture, including strength and stability | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural acceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, mandatory E1 grade compliance requirement | |
| GB/T 4893.8-2013 | Surface wear resistance test for furniture coatings, applicable for finish durability acceptance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural acceptance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, mandatory E1 grade compliance requirement; 3. GB/T 4893.8-2013: Surface wear resistance test for furniture coatings, applicable for finish durability acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
