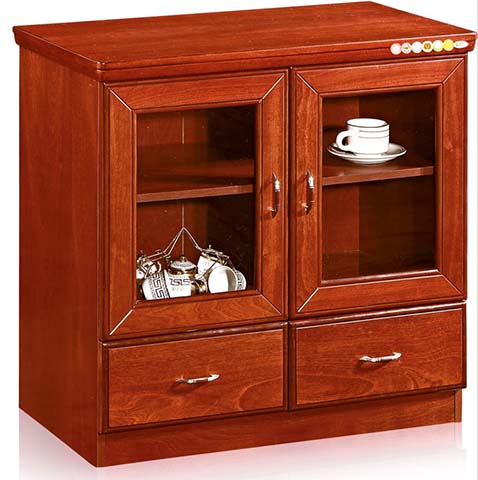

Reddish Brown Wood Veneer Office Tea Storage Cabinet with Upper Glass Doors and Lower Drawers (model OF-CAB-8040-GD2DR-RB) is listed under Traditional Office Sideboard. Dimensions: 800 × 400 × 800 mm. Materials: E1-grade medium density fiberboard, density 850kg/m³, moisture content 12%. Load capacity: 50 kg. Product Features: traditional, style, freestanding, low, cabinet, glazed, upper, doors, dual, lower, drawers, enclosed, storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | HAIBANG | Model | OF-CAB-8040-GD2DR-RB |
| Overall dimensions (W × D × H) | 800 × 400 × 800 mm | Top worktop thickness | 25 mm |
| Upper glass door section height | 480 mm | Lower drawer section height | 220 mm |
| Plinth base height | 100 mm | Single glass door panel size | 330 x 420 mm |
| Glass panel thickness | 5 mm | Interior adjustable shelf count | 2 units |
| Single drawer internal dimensions | 360 x 350 x 150 mm | Adjustable shelf spacing step | 50 mm |
| Door frame wood thickness | 20 mm | Carcass side panel thickness | 18 mm |
| Back panel thickness | 9 mm | Edge banding thickness | 1 mm |
| Carcass Panel Thickness | 25 mm | Door / Drawer Front Thickness | 22 mm |
| Shelf Thickness | 25 mm | Uniform shelf static load capacity | 50 kg |
| Total cabinet net weight | 40 kg | Hinge open/close cycle rating | 100000 cycles |
| Drawer slide open/close cycle rating | 50000 cycles | Hardware salt spray corrosion resistance | 48 hours |
| Paint coating pencil hardness | 2H | Connector eccentric body compression resistance | 240 N |
| Shelf Distributed Load | 30 kg/shelf | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Hinge Opening Angle / Life | 165°; 80000 cycles | Carcass panels | E1-grade medium density fiberboard, density 850kg/m³, moisture content 12% |
| Exterior finish | 0.8mm thick natural wood veneer, reddish brown stain, five-coat polyurethane paint | Upper door panels | Wood-framed clear tempered glass, mitered corner detailing |
| Handles | Polished zinc alloy bar pulls, chrome finish | Door hinges | Cold-rolled steel hydraulic soft-close hinges, nickel plated |
| Drawer slides | Three-section full-extension cold-rolled steel ball bearing slides | Upper door operation | Dual hinged doors open to 110 degrees, soft-close detent, provides full access to interior |
| Drawer operation | Dual drawers fully extend on ball bearing slides, flush fit when closed | Shelf adjustment | Interior shelves adjust in 50mm increments via pre-drilled support holes, accommodates varying item heights |
| Placement flexibility | Freestanding plinth base requires no wall mounting, suitable for placement against office walls or under side counters | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | Reference Packaging Volume | 0.65 m³/set |
| Office pantry use | Stores teaware, drinkware and small refreshment supplies next to water stations | Meeting room side storage | Placed against walls to hold cups, meeting supplies and documents |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 400 × 800 mm | |
|---|---|---|
| Top worktop thickness | 25 mm | |
| Upper glass door section height | 480 mm | |
| Lower drawer section height | 220 mm | |
| Plinth base height | 100 mm | |
| Single glass door panel size | 330 x 420 mm | |
| Glass panel thickness | 5 mm | |
| Interior adjustable shelf count | 2 units | |
| Single drawer internal dimensions | 360 x 350 x 150 mm | |
| Adjustable shelf spacing step | 50 mm | |
| Door frame wood thickness | 20 mm | |
| Carcass side panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Edge banding thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Uniform shelf static load capacity | 50 kg | |
|---|---|---|
| Total cabinet net weight | 40 kg | |
| Hinge open/close cycle rating | 100000 cycles | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Hardware salt spray corrosion resistance | 48 hours | |
| Paint coating pencil hardness | 2H | |
| Connector eccentric body compression resistance | 240 N | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | E1-grade medium density fiberboard, density 850kg/m³, moisture content 12% | |
|---|---|---|
| Exterior finish | 0.8mm thick natural wood veneer, reddish brown stain, five-coat polyurethane paint | |
| Upper door panels | Wood-framed clear tempered glass, mitered corner detailing | |
| Handles | Polished zinc alloy bar pulls, chrome finish | |
| Door hinges | Cold-rolled steel hydraulic soft-close hinges, nickel plated | |
| Drawer slides | Three-section full-extension cold-rolled steel ball bearing slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper door operation | Dual hinged doors open to 110 degrees, soft-close detent, provides full access to interior | |
|---|---|---|
| Drawer operation | Dual drawers fully extend on ball bearing slides, flush fit when closed | |
| Shelf adjustment | Interior shelves adjust in 50mm increments via pre-drilled support holes, accommodates varying item heights | |
| Placement flexibility | Freestanding plinth base requires no wall mounting, suitable for placement against office walls or under side counters |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office pantry use | Stores teaware, drinkware and small refreshment supplies next to water stations | |
|---|---|---|
| Meeting room side storage | Placed against walls to hold cups, meeting supplies and documents |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable for safety and performance requirements of domestic and non-domestic storage cabinets | |
|---|---|---|
| EN 12521:2015 | Applicable for strength, durability and safety requirements of non-domestic furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable for performance and durability testing of storage cabinets for commercial office use |
|---|
Standards applicable to China-market projects
| GB 18580-2017 | Applicable for formaldehyde emission limits of wood-based panel materials, E1 grade ≤0.124mg/m³ | |
|---|---|---|
| GB 18581-2020 | Applicable for VOC and harmful substance limits of solvent-based wood furniture coatings | |
| GB/T 3324-2017 | Applicable for general technical requirements, dimensions and tolerances of wooden furniture | |
| GB/T 28203-2011 | Applicable for performance requirements of furniture three-in-one connecting hardware |
This product must meet the following technical requirements: 1. GB 18580-2017: Applicable for formaldehyde emission limits of wood-based panel materials, E1 grade ≤0.124mg/m³; 2. GB 18581-2020: Applicable for VOC and harmful substance limits of solvent-based wood furniture coatings; 3. GB/T 3324-2017: Applicable for general technical requirements, dimensions and tolerances of wooden furniture; 4. GB/T 28203-2011: Applicable for performance requirements of furniture three-in-one connecting hardware; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
